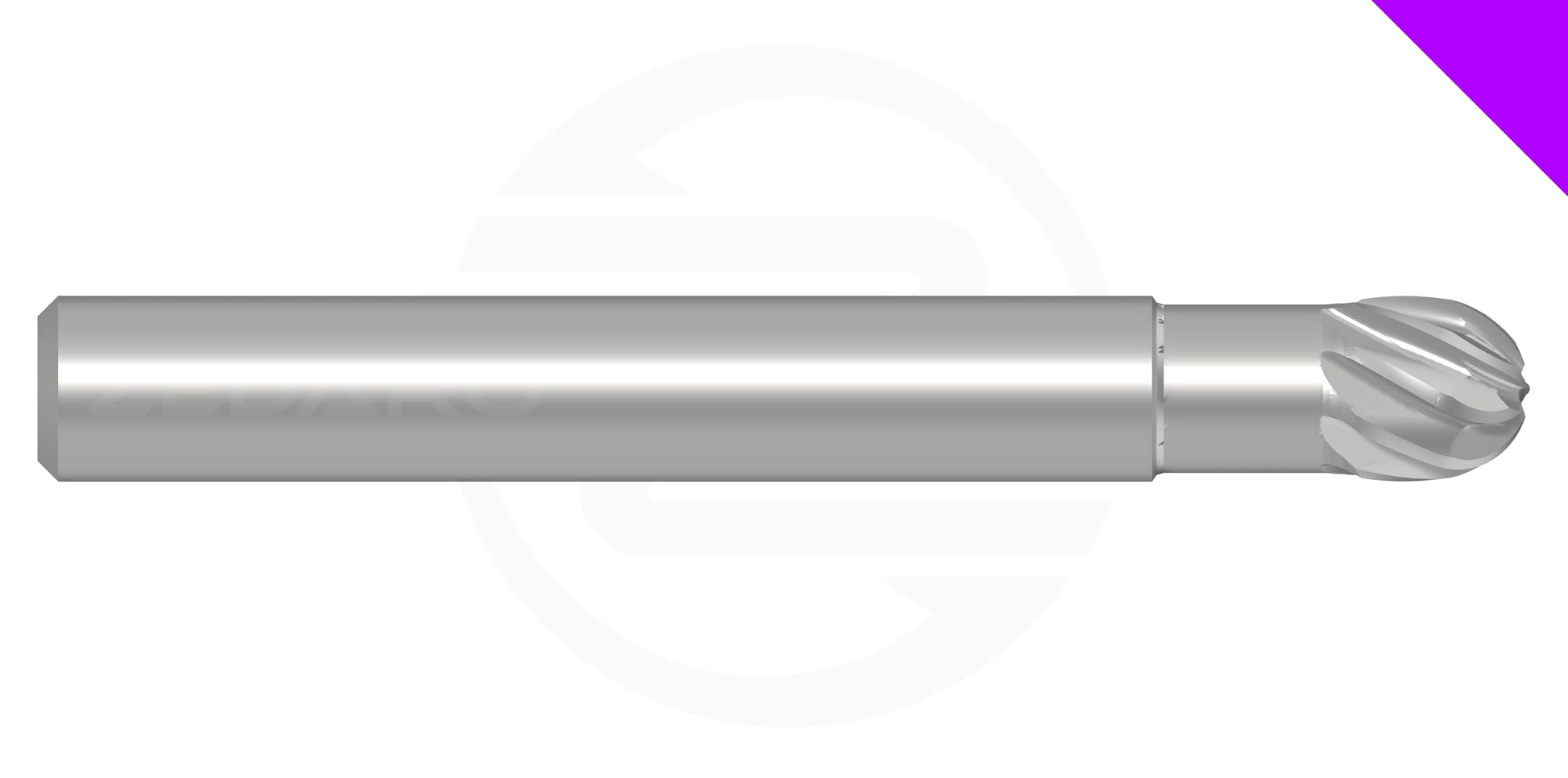

Zedaro PURSWIPER-6.350R3.18-12.5HAW12.7-G20AB1 (0707683)
Zedaro PURSWIPER-6.350R3.18-12.5HAW12.7-G20AB1 (0707683)
Couldn't load pickup availability
Zedaro UID: 0707683
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro PURSWIPER-6.350R3.18-12.5HAW12.7-G20AB1 | |
| EDP # | 0707683 | |
| Workpiece Material(s) | Titanium (Purple) | |
| Weight (1 pc.) | 1.0 oz | 25.0 g |
| Cutting Diameter | 0.2500" | 6.350 mm |
| Corner Radius | 0.1252" | 3.180 mm |
| Application | Finish 3D Fine Under Nominal (Swiper) | |
| Form | R-BALL | |
| Shank Diameter (h6) | 0.2500" | 6.350 mm |
| Cutting Edges | 8 | |
| Tolerance Class | g5 | |
| Length of Cut | 0.2500" | 6.350 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | 0.4921" | 12.500 mm |
| Minimum Extension | 0.5000" | 12.700 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
- The 'Swiper' line is a tight-tolerance 3D finishing tool which has as many flutes as possible in order to allow for very high feed rates while removing a thin layer of material. These tools should be used last in order to achieve the perfect final form and finish.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'HAW' refers to the bird species 'Hawk'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
| Cutting Parameters - Fine Point Milling | ||
| Coolant | Low Pressure | |
| Tool Extension (Stickout) | 0.5000" | 12.700 mm |
| Step Over (Radial, Ae) | 0.0050" | 0.127 mm |
| Step Down (Axial, Ap) | 0.0020" | 0.051 mm |
| Spindle Speed (S) | 12222 RPM | |
| Feed Rate (F) | 96 in/min | 2436 mm/min |
| Cutting Speed (Vc) | 800 ft/min | 244 m/min |
