Description

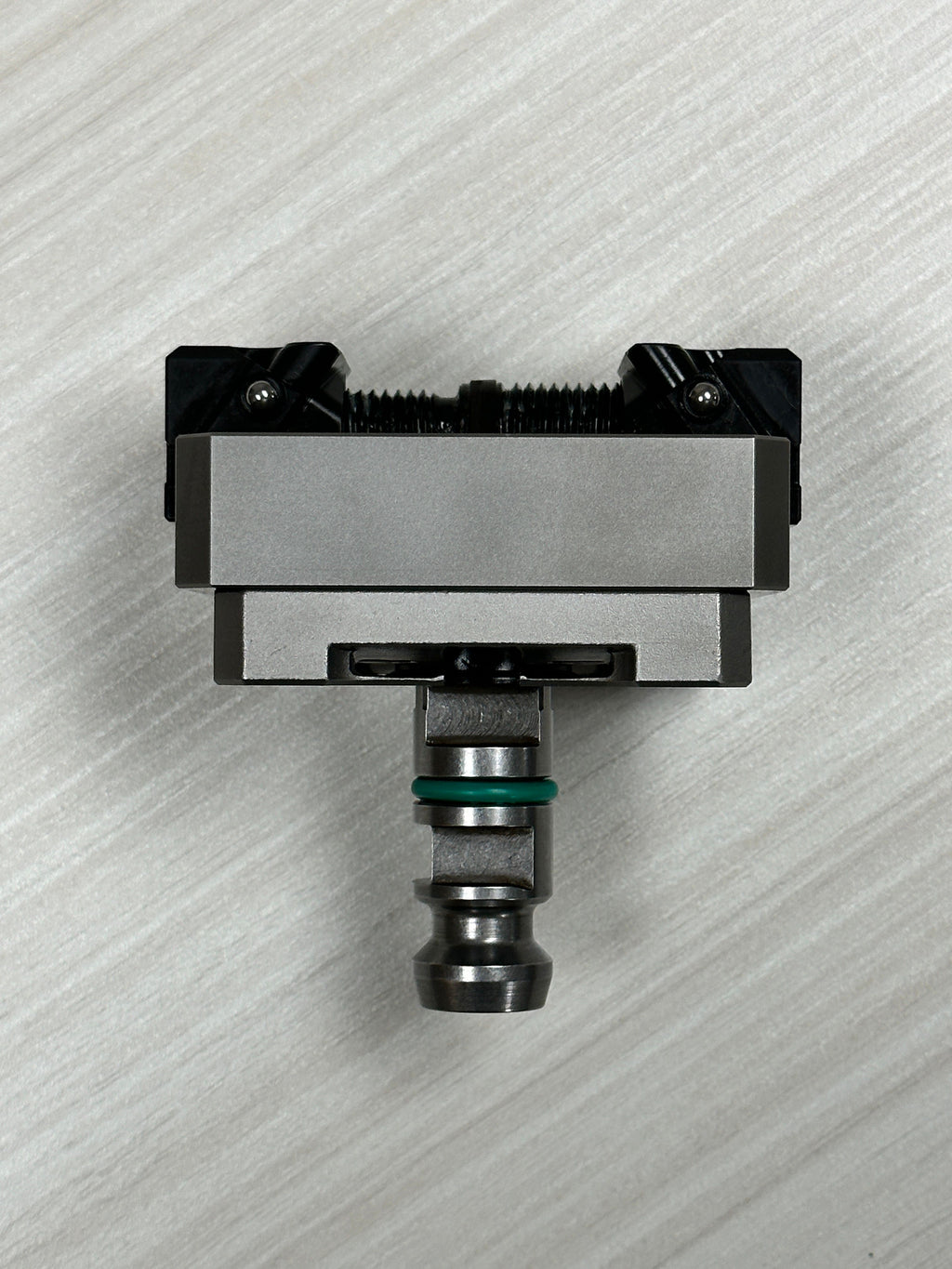

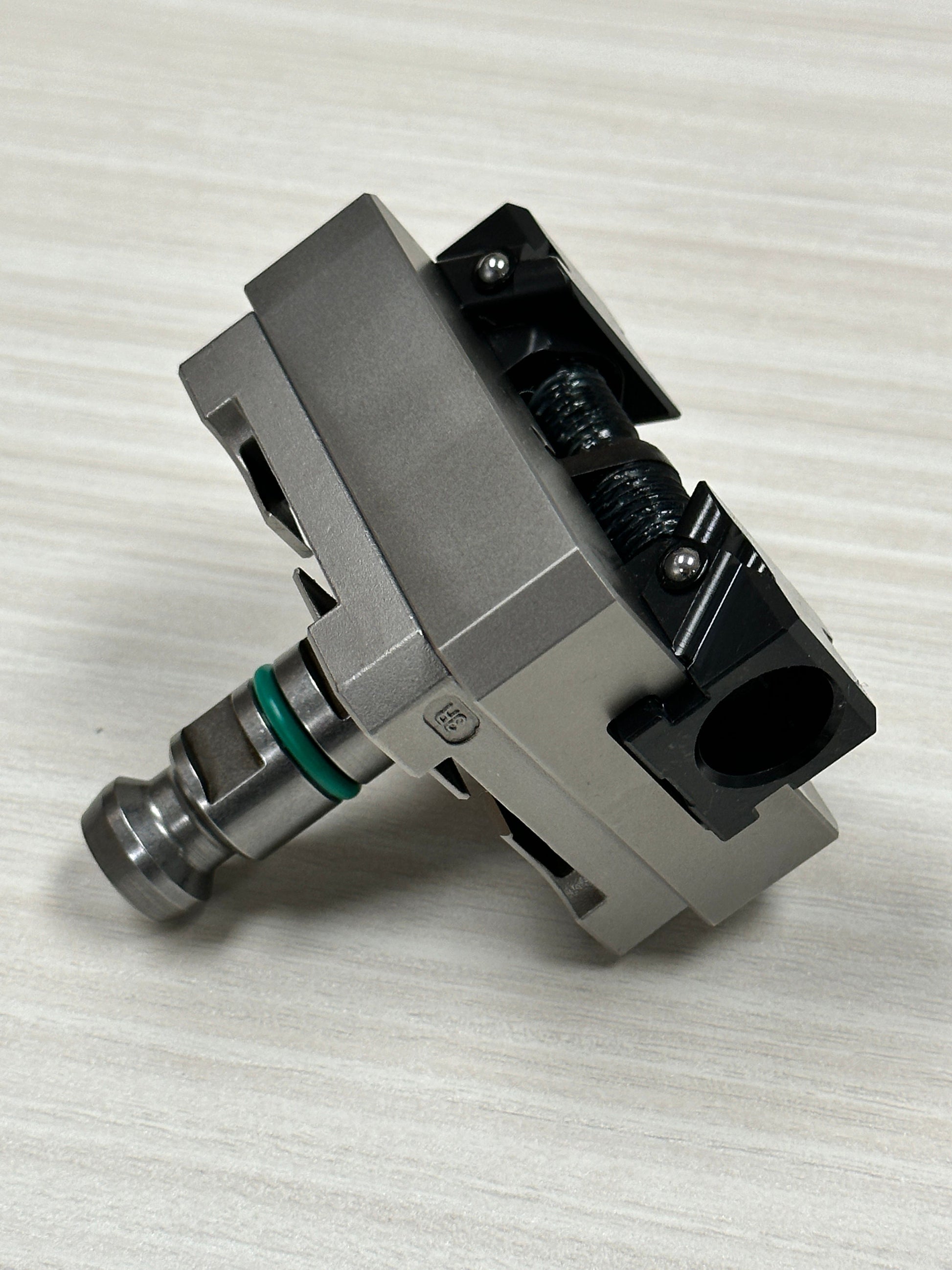

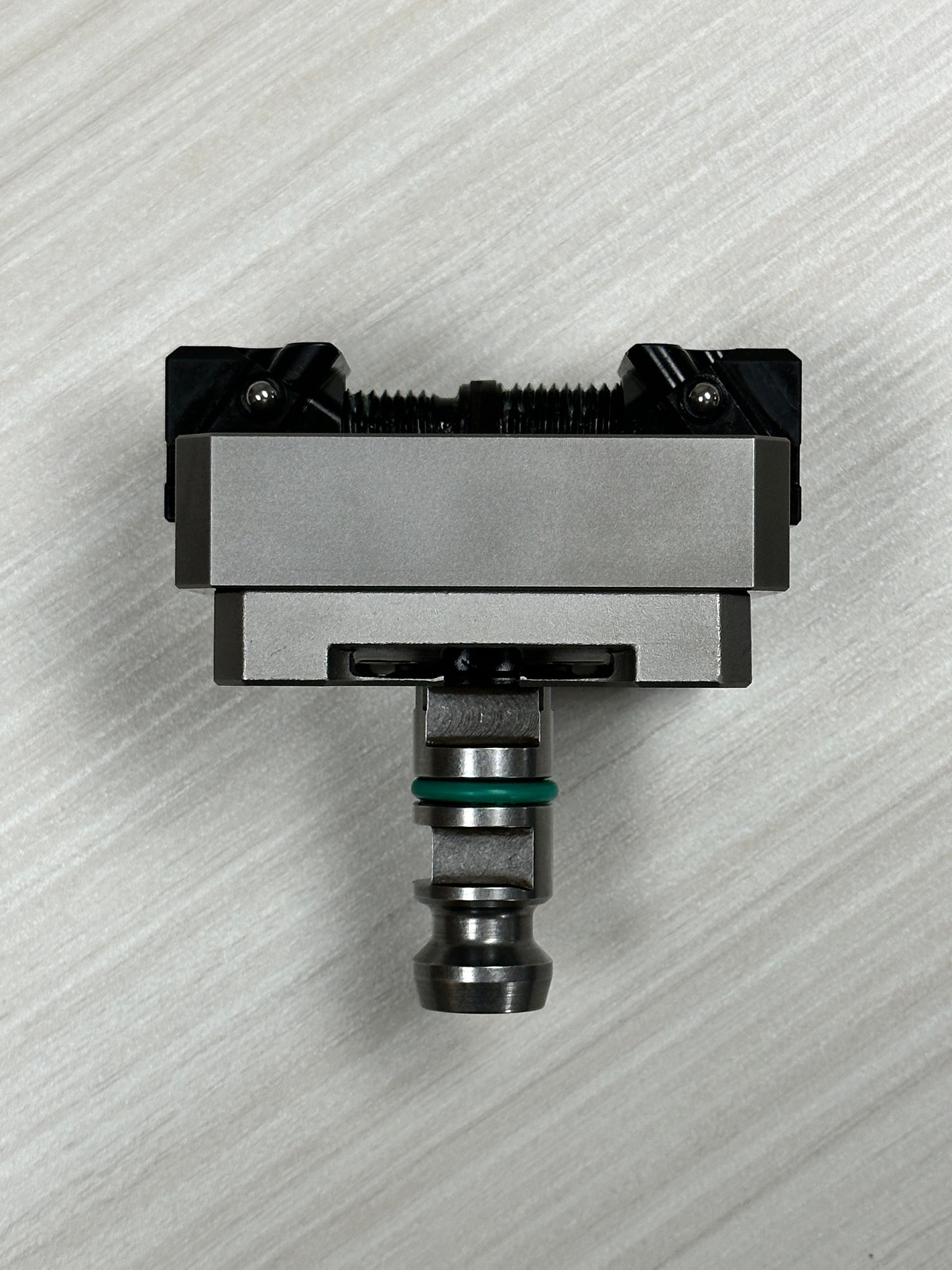

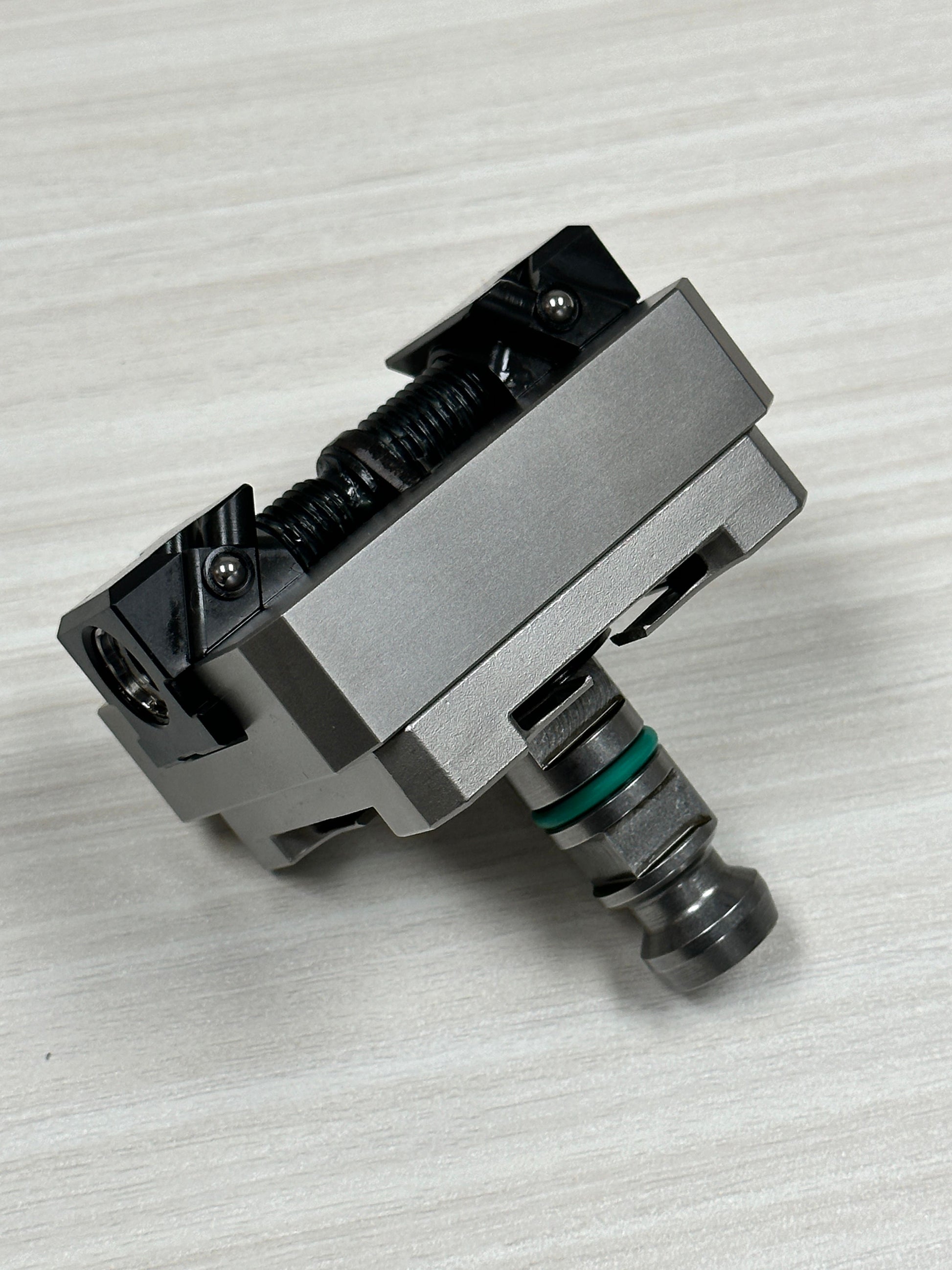

Zedaro Pre-Assembled ZSGMINI Centric Vice on System3R Macro 70x70mm Pallet with Drawbar.
Clamping force: max. 16 kN
Note that Jaws are not included! - See below for suitable combinations.
This assembly is comprised of the following components:

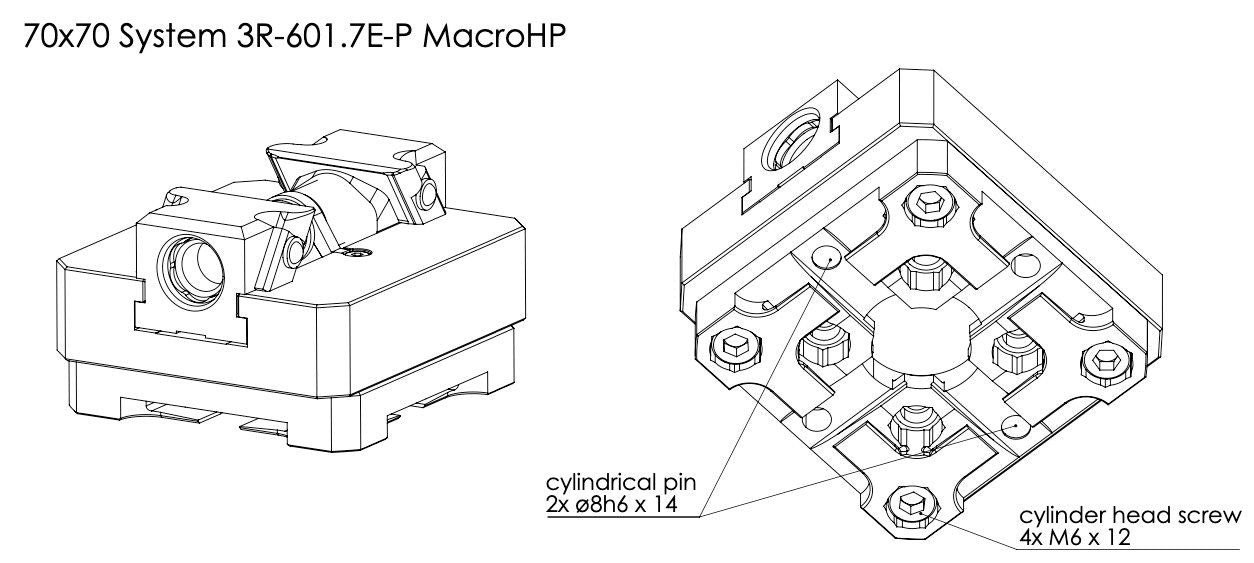

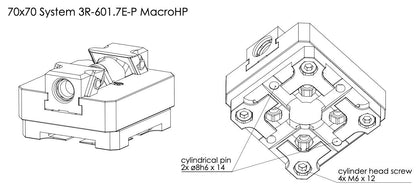

(1 pc) CERATIZIT ZSGMINI.ZS.OSB.70.80 C3 70 L-80 System 3R MacroHP CENTRIC VICE 9200050896 (0682388)

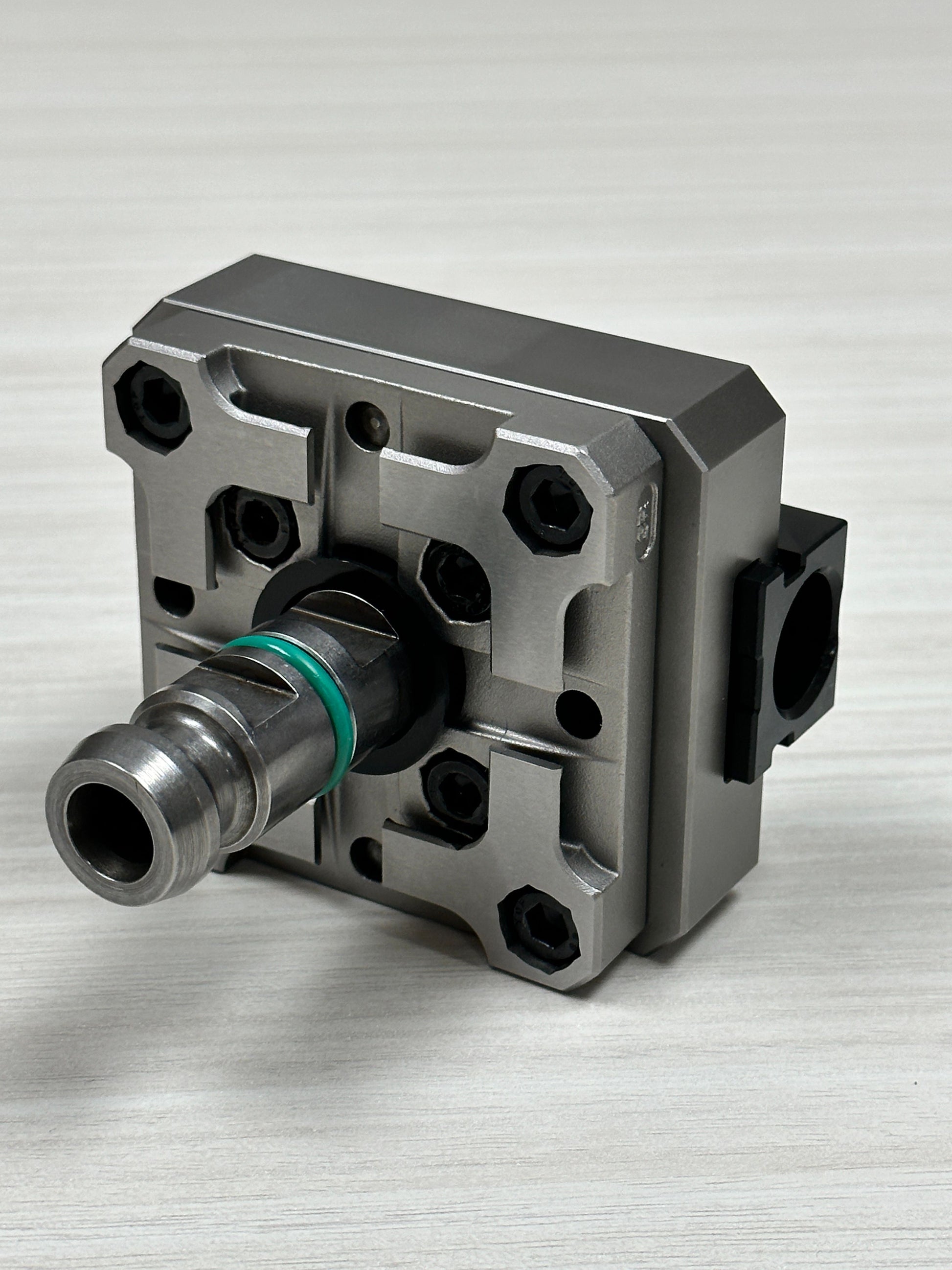

(1 pc) System 3R - 3R-601.7E-P Macro Electrode Holder- Cast Stainless 70mmx70mm (0659614)
(1 pc) System 3R - 3R-605.1EE Drawbar - Macro for Automatic Chuck (0659613)
Compatible Jaws which may be purchased seprarately:
CERATIZIT ZSGMINI.B-W.45.24.MM SOFT JAW 8091231000 (0681884)
CERATIZIT ZSGMINI.B-W.70.24.MM SOFT JAW 8091231100 (0681885)
CERATIZIT ZSGMINI.S-WB.G.45.3 QUICK CHANGE JAW 8091230100 (0650346)
CERATIZIT ZSGMINI.S-WB.G.70.3 QUICK CHANGE JAW 8091230200 (0650320)
CERATIZIT ZSGMINI.S-WB.G.VSB.45.3 QUICK CHANGE JAW 8091230500 (0650347)
CERATIZIT ZSGMINI.S-WB.G.VSB.70.3 QUICK CHANGE JAW 8091230600 (0650321)
CERATIZIT ZSGMINI.S-WB.GL.45.5 QUICK CHANGE JAW 8091230300 (0650318)
CERATIZIT ZSGMINI.S-WB.GL.70.5 QUICK CHANGE JAW 8091230400 (0650351)
CERATIZIT ZSGMINI.S-WB.GL.VSB.45.5 QUICK CHANGE JAW 8091230700 (0650319)
CERATIZIT ZSGMINI.S-WB.GL.VSB.70.5 QUICK CHANGE JAW 8091230800 (0650352)
