Description

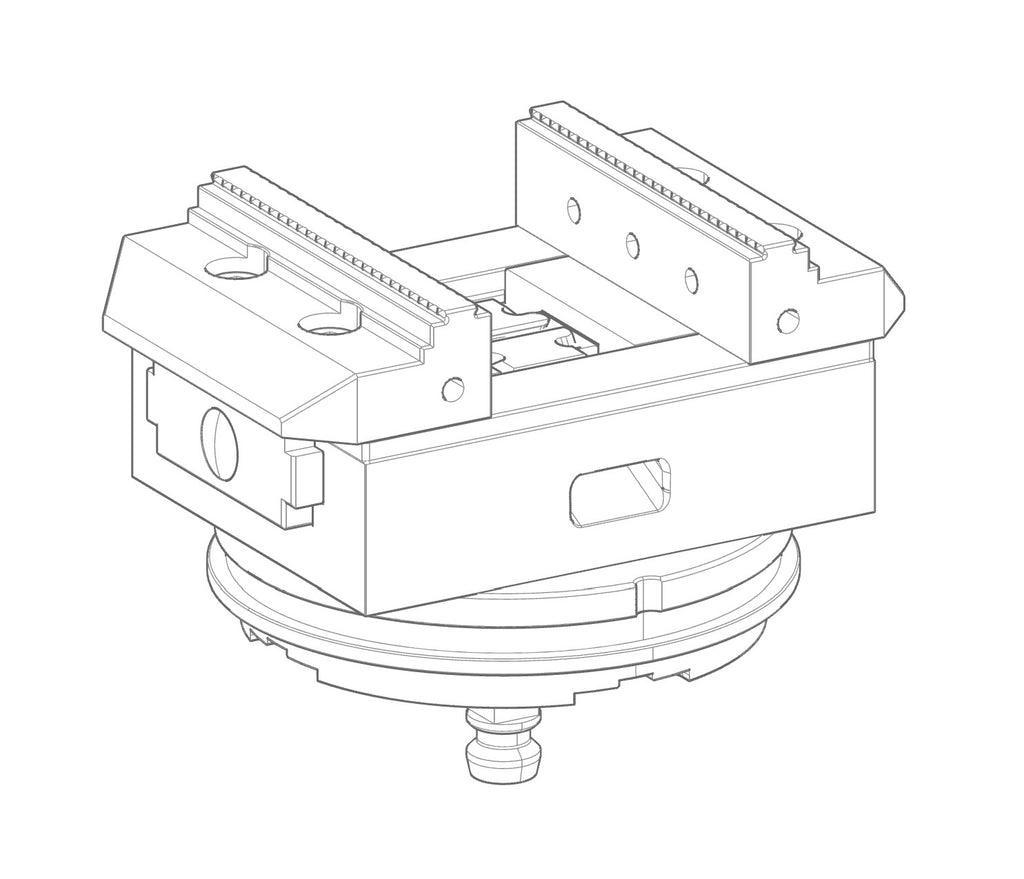

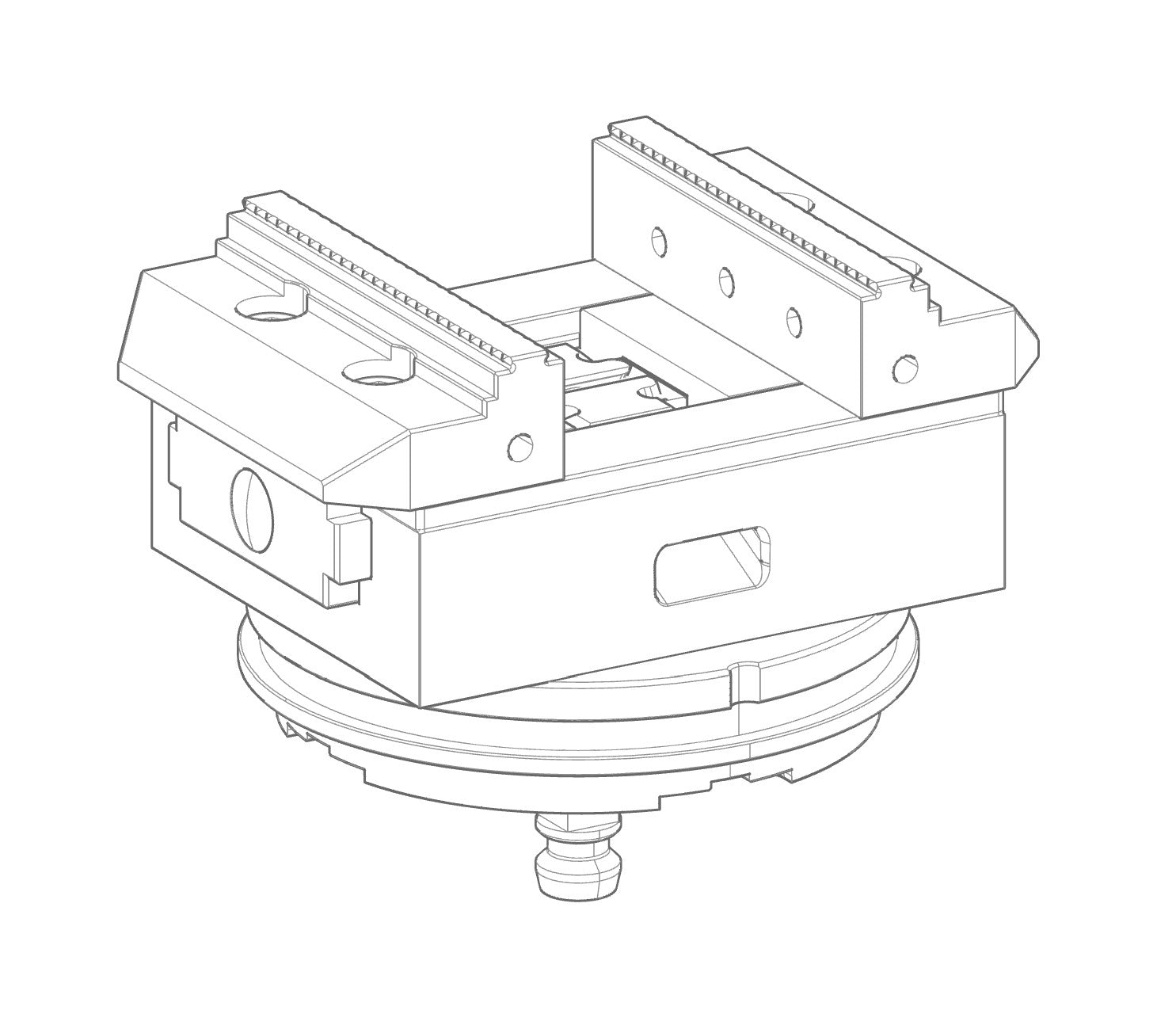

Zedaro Pre-Assembled ZSG-4.1.125.160.MBG Centric Vice on System3R Macro Magnum 156mm Pallet with Drawbar.
Clamping force: max. 35 kN
This assembly is comprised of the following components:
(1 pc) MODIFIED ZSG-4.1.125.160.MBG CENTRIC VICE CNZ.125.007.01C2.0 (0712601)
(2 pcs) ZSG-4.125 REVERSIBLE JAW GRIP 8087851000 (0650355)
(1 pc) System 3R - 3R-681.51-SA Macro Magnum Pallet 156mm Diameter (0659616)
(1 pc) System 3R - 3R-605.1EE Drawbar - Macro for Automatic Chuck (0659613)
(2 pc) Dowel Pin
(8 pc) SHCS
