Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Sipper' line is for general purpose reaming.
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
| Tool Properties | ||
|---|---|---|
| Name | GRNSIPPER-3.000H0.25-8.00EAG20.0-G25AB1 | |
| EDP # | 0709719 | |
| Material | Wrought Aluminum | Application | General Reaming (Sipper) |

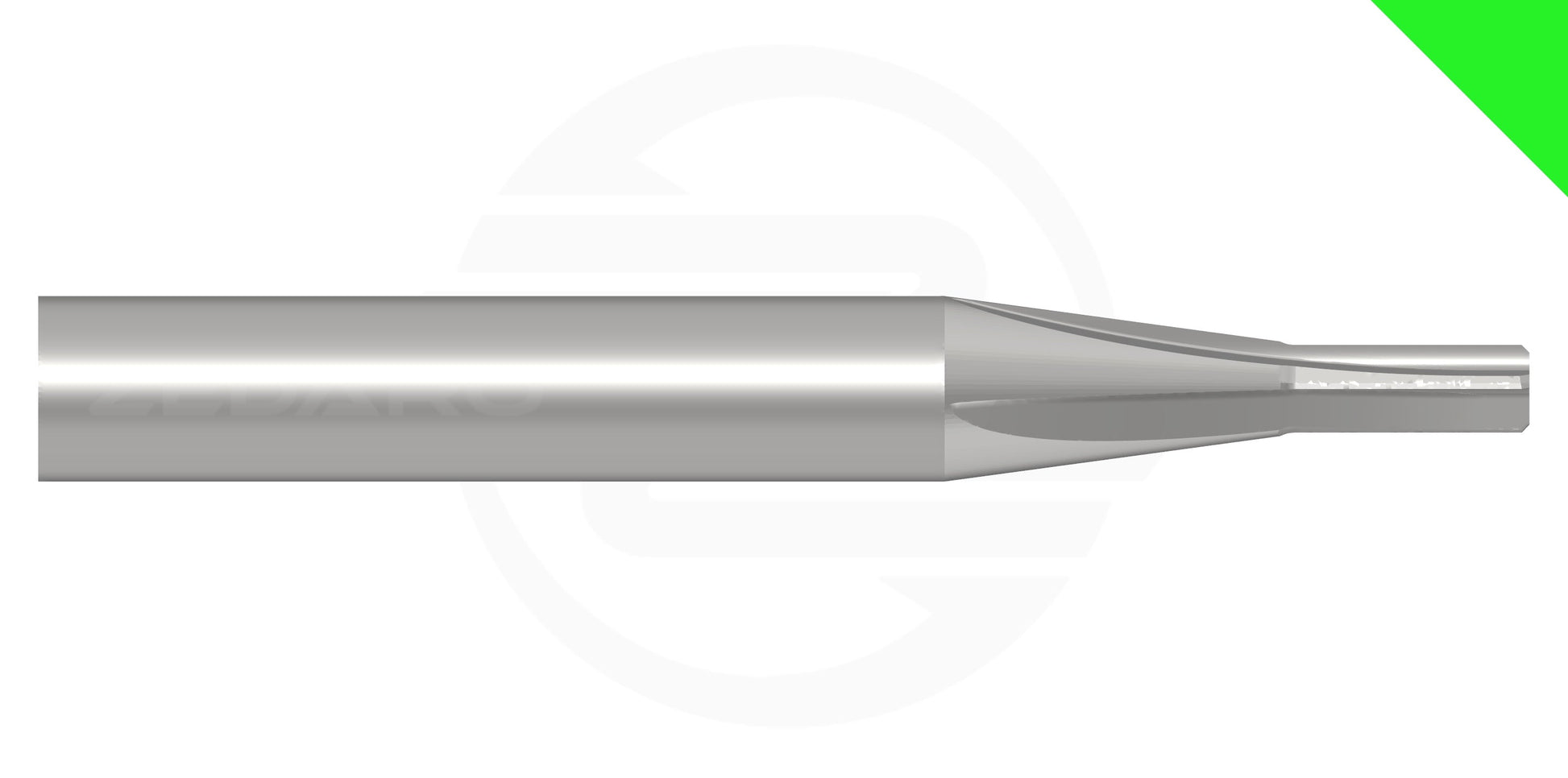

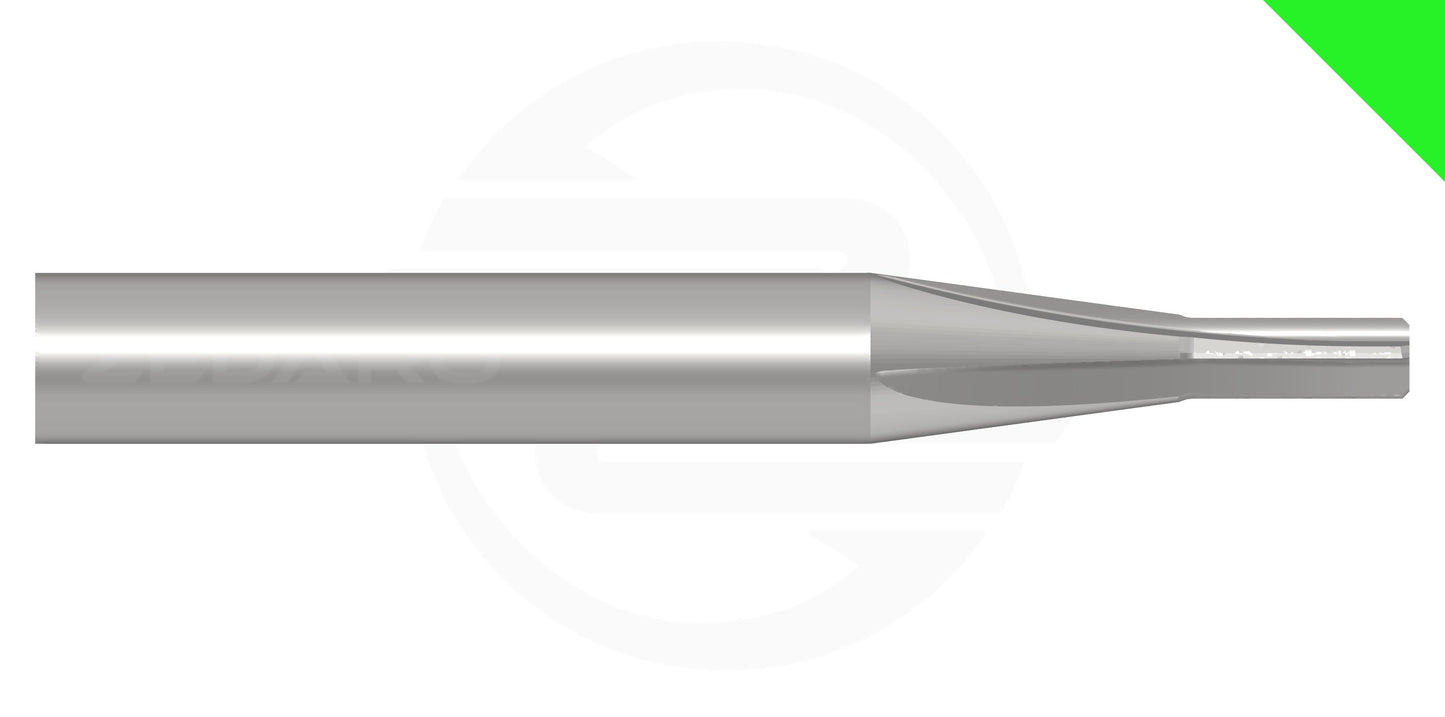

| Form | Reamer | |
| Cutting Diameter | 0.1181" | 3.000 mm |
| Tip Offset | 0.0098" | 0.250 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3150" | 8.000 mm |
| Reach | 0.3150" | 8.000 mm |
| Minimum Extension | 0.8" | 20.0 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 4 | |
| Tolerance Class | null | |
