Zedaro GRNCHIRPR-19.80S25.9-11STEPFRM-U49CG1 (0710192)
Zedaro GRNCHIRPR-19.80S25.9-11STEPFRM-U49CG1 (0710192)
Couldn't load pickup availability
Zedaro UID: 0710192
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

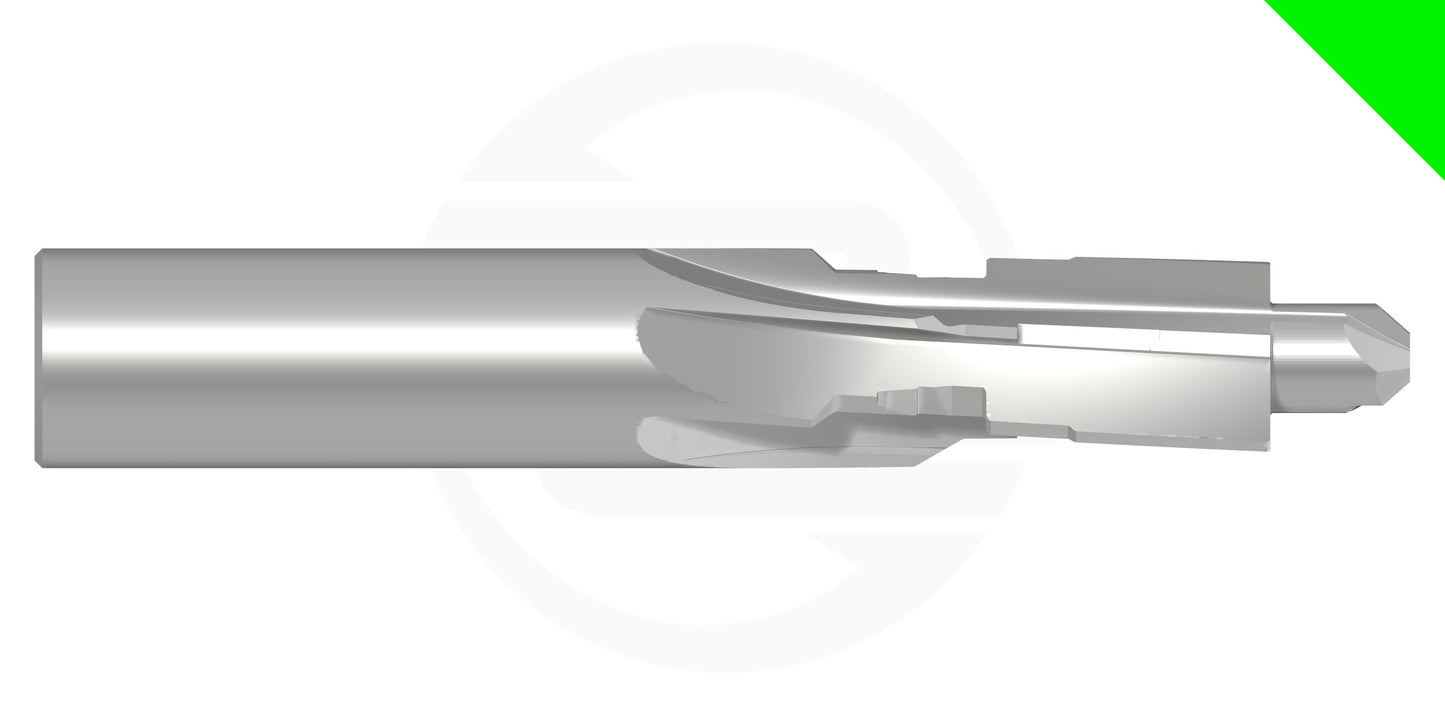

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNCHIRPR-19.80S25.9-11STEPFRM-U49CG1 | |
| EDP # | 0710192 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 22.0 oz | 611 g |
| Cutting Diameter | 0.7795" | 19.800 mm |
| Slot Thickness | 1.0197" | 25.900 mm |
| Application | Finish Flank Milling <20k RPM (Chirper) | |
| Form | Slot Mill | |
| Shank Diameter (h5) | 0.7874" | 20.000 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h6 | |
| Length of Cut | 2.1654" | 55.000 mm |
| Overall Length | 4.9000" | 124.460 mm |
| Reach | 2.7953" | 71.000 mm |
| Minimum Extension | 2.7953" | 71.000 mm |
| Maximum Extension | 3.3268" | 84.500 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
- This is a custom design which does not follow standard proportions.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
