Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 50768075
Ceratizit Material Number: 5076807500
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 5076817503, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.

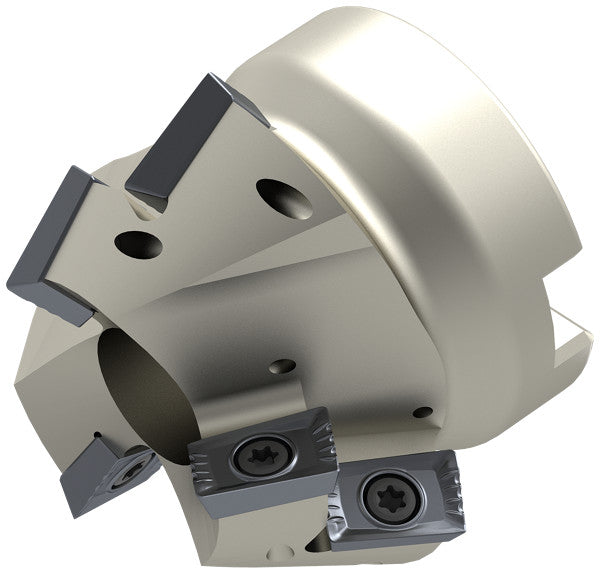

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A2420.50.R.03-15.75° MaxiMill Chamfer Cutter 50768075 | |
| EDP # | 0710202 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 382 g |
| Tool cutting edge angle / KAPR | 75 ° | |
| Cutting diameter / DC | 1.3780' | 35.000 mm |
| Depth of cut maximum / APMX ±0,3 | 1.1220' | 28.500 mm |
| Face mounted insert count / ZNF | 3 | |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| B ±0,3 | 1.1654' | 29.600 mm |
| Peripheral mounted insert count / ZNP | 2 | |
| Overall length / OAL | 2.3622' | 60.000 mm |
| Hub diameter / DHUB | 1.9291' | 49.000 mm |
| Mounting spigot diameter / DCONMS | 0.8661' | 22.000 mm |
| Insert | LD.. 1504.. | |
| torque moment | 3.2 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
