Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 50769100
Ceratizit Material Number: 5076910000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

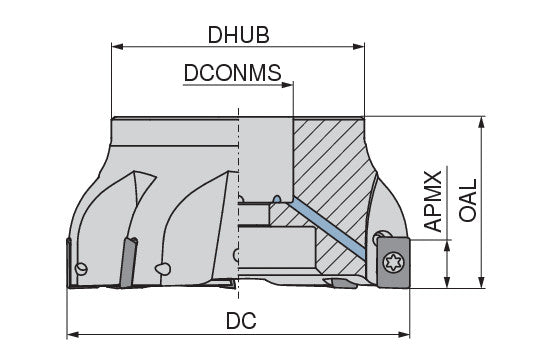

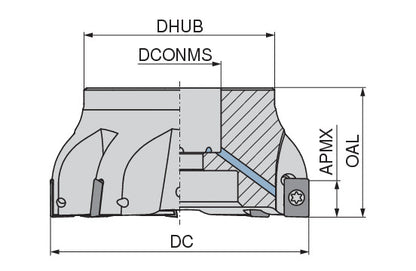

| Properties | ||
|---|---|---|
| Name | Ceratizit A241.100.R.08-15 MaxiMill Shell Mill 50769100 | |
| EDP # | 0710209 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 66.0 oz | 1857 g |
| Cutting diameter / DC | 3.9370' | 100.000 mm |
| Face mounted insert count / ZNF | 8 | |
| Overall length / OAL | 1.9685' | 50.000 mm |
| Hub diameter / DHUB | 2.9528' | 75.000 mm |
| Mounting spigot diameter / DCONMS | 1.2598' | 32.000 mm |
| Insert | LD.. 1504.. | |
| torque moment | 3.2 Nm | |
| L4 | 0.9843' | 25.000 mm |
| Tool cutting edge angle / KAPR | 90 ° | |
| Depth of cut maximum / APMX | 0.5512' | 14.000 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
