Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70625032
Ceratizit Material Number: 5209
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

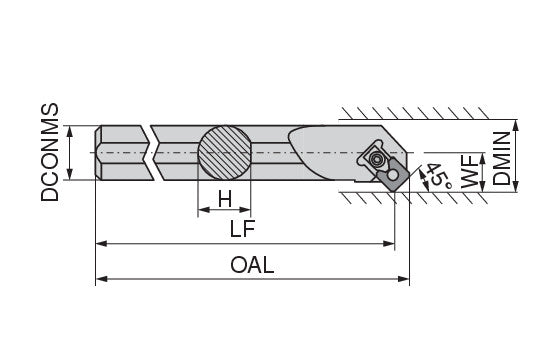

| Properties | ||
|---|---|---|
| Name | Ceratizit S32S MSSCL 12 MaxiLock-P - 45° - Boring Bar With Top Clamping 70625032 | |
| EDP # | 0710287 | |
| Weight (1 pc.) | 52.0 oz | 1488 g |
| Mounting spigot diameter / DCONMS | 1.2598' | 32.000 mm |
| Shank height / H | 1.1811' | 30.000 mm |
| Functional length / LF | 9.8425' | 250.000 mm |
| Overall length / OAL | 10.1575' | 258.000 mm |
| Functional width / WF | 0.8661' | 22.000 mm |
| Minimum bore diameter / DMIN | 1.5748' | 40.000 mm |
| Insert | SCMX 1204 | |
| torque moment | 5 Nm | |
| Version | Left-hand | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
