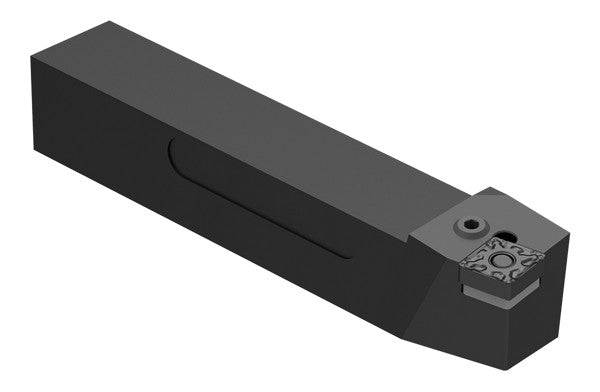

Ceratizit PCBNL 2525 M12-T CoreLine 75° Toolholder With Lever Clamping 70501025 (0710427)
Ceratizit PCBNL 2525 M12-T CoreLine 75° Toolholder With Lever Clamping 70501025 (0710427)
Couldn't load pickup availability
Ceratizit Article Number: 70501025
Ceratizit Material Number: 61085
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCBNL 2525 M12-T CoreLine 75° Toolholder With Lever Clamping 70501025 | |
| EDP # | 0710427 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 26.0 oz | 740 g |

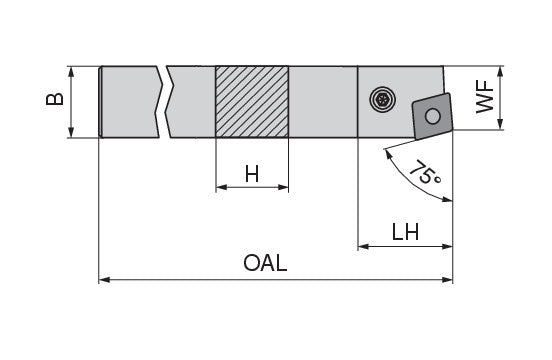

| Shank height / H | 0.9843" | 25.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Head length / LH | 1.0906" | 27.700 mm |
| Functional width / WF | 0.8661" | 22.000 mm |
| Insert | CN.. 1204 | |
| Overall height / OAH | 1.1614" | 29.500 mm |
| torque moment | 4 Nm | |
| Clamping system | Lever clamping for negative indexable inserts | |
| holder form | PCBN 75° | |
| Version | Left | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
