Description
Ceratizit Article Number: 70509132
Ceratizit Material Number: 61102
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCLNL 3232 P16-T CoreLine 95° Toolholder With Lever Clamping 70509132 | |
| EDP # | 0710439 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 48.0 oz | 1362 g |
| Product-Carbon-Footprint | B | |

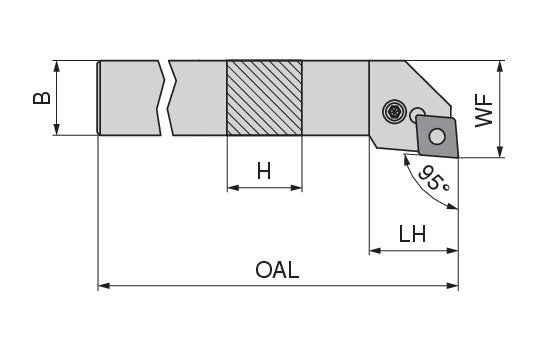

| Shank height / H | 1.2598" | 32.000 mm |
| Shank width / B | 1.2598" | 32.000 mm |
| Overall length / OAL | 6.6929" | 170.000 mm |
| Head length / LH | 1.2835" | 32.600 mm |
| Functional width / WF | 1.5748" | 40.000 mm |
| Insert | CN.. 1606 | |
| Overall height / OAH | 1.5512" | 39.400 mm |
| torque moment | 4 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
