Description
Note that this item has been discontinued and will not be re-stocked.
SDHCL 2020 K11 MAXILOCK S EXTERNAL TOOLHOLDER
Mat No: 71933, Article No: 70689020
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SDHCL 2020 K11 MAXILOCK S EXTERNAL TOOLHOLDER 71933 (0710478) | |
| EDP # | 0710478 | |
| Weight | 14.5 oz | 411.7 g |

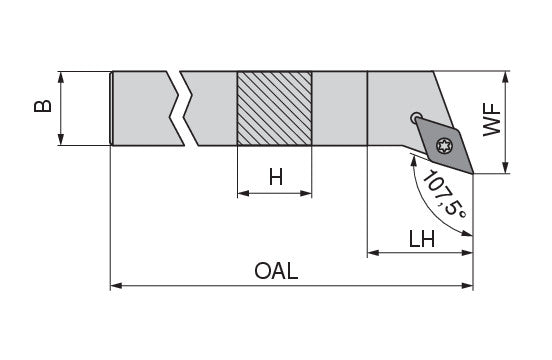

| Shank height H | 0.7874 inch | 20 mm |
| Shank width B | 0.7874 inch | 20 mm |
| Overall length OAL | 4.9213 inch | 125 mm |
| Head length LH | 0.5512 inch | 14 mm |
| Functional width WF | 1.2598 inch | 32 mm |
| Insert | DC.. 11T3 | |
| torque moment | 3.2 Nm | |
| Designation | SDHCL 2020 K11 | |
| Version | Left-hand | |
