Description
Ceratizit Article Number: 70668125
Ceratizit Material Number: 77404
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

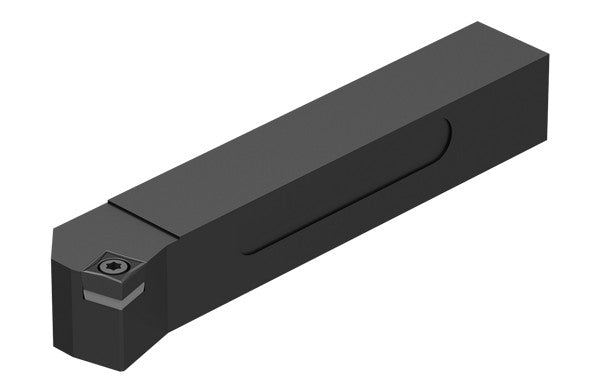

| Name | Ceratizit SSKCR 2525 M12 MaxiLock-S - 75° - Toolholder With Screw Clamping 70668125 | |
| EDP # | 0710526 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 27.0 oz | 768 g |

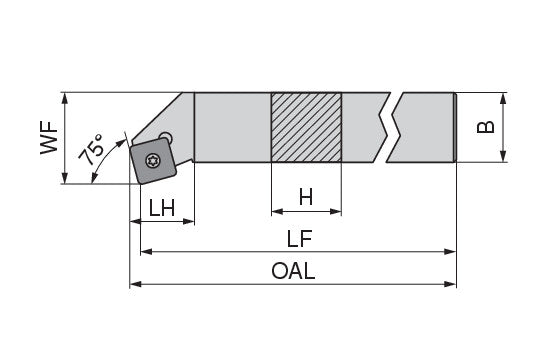

| Shank height / H | 0.9843" | 25.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 6.0354" | 153.300 mm |
| Functional length / LF | 5.9055" | 150.000 mm |
| Head length / LH | 0.9055" | 23.000 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Insert | SC.. 1204.. | |
| Overall height / OAH | 0.9646" | 24.500 mm |
| torque moment | 5 Nm | |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
