Description
Ceratizit Article Number: 70716012
Ceratizit Material Number: 77433
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

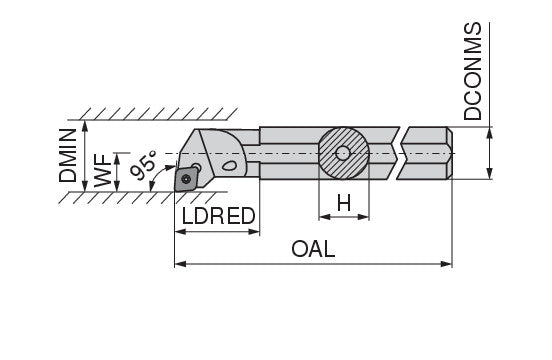

| Properties | ||
|---|---|---|
| Name | Ceratizit S12Q SCLCR 06 CoreLine - 95° - Boring Bar With Screw Clamping 70716012 | |
| EDP # | 0710544 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 154 g |
| Mounting spigot diameter / DCONMS | 0.4724" | 12.000 mm |
| Shank height / H | 0.4331" | 11.000 mm |
| Overall length / OAL | 7.0866" | 180.000 mm |
| Reduced body diameter length / LDRED | 0.7402" | 18.800 mm |
| Functional width / WF | 0.3543" | 9.000 mm |
| Minimum bore diameter / DMIN | 0.6299" | 16.000 mm |
| Insert | CC.. 0602 | |
| Functional height / HF | 0.2949" | 7.490 mm |
| Body diameter, reduced / BDRED | 0.4528" | 11.500 mm |
| Shank width / B | 0.4528" | 11.500 mm |
| torque moment | 1.2 Nm | |
| Version | Right | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
