Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70673016
Ceratizit Material Number: 79060
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7065801600, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

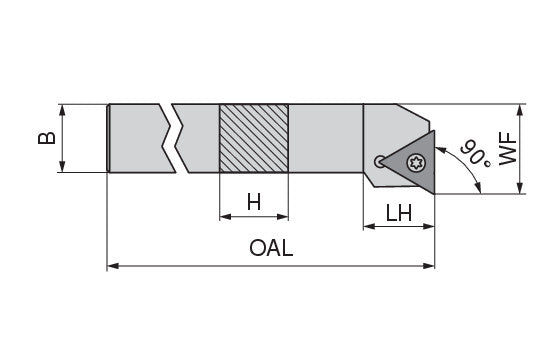

| Properties | ||
|---|---|---|
| Name | Ceratizit STFCL 1616 H16 MaxiLock-S - 90° - Toolholder With Screw Clamping 70673016 | |
| EDP # | 0710578 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 232 g |
| Shank height / H | 0.6299' | 16.000 mm |
| Shank width / B | 0.6299' | 16.000 mm |
| Overall length / OAL | 3.9370' | 100.000 mm |
| Head length / LH | 0.7874' | 20.000 mm |
| Functional width / WF | 0.7874' | 20.000 mm |
| Insert | TC.. 16T3 | |
| Overall height / OAH | 0.6102' | 15.500 mm |
| torque moment | 3.2 Nm | |
| Version | Left-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
