Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70704020
Ceratizit Material Number: 143162
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7066202001, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

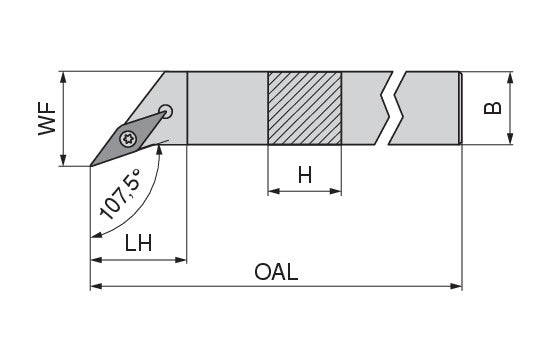

| Name | Ceratizit SVHCR 2020 K11 MaxiLock-S - 107.5° - Toolholder With Screw Clamping 70704020 | |
| EDP # | 0710720 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 373 g |
| Shank height / H | 0.7874' | 20.000 mm |
| Shank width / B | 0.7874' | 20.000 mm |
| Overall length / OAL | 4.9213' | 125.000 mm |
| Head length / LH | 0.5748' | 14.600 mm |
| Functional width / WF | 0.9843' | 25.000 mm |
| Insert | VC.. 1103 | |
| torque moment | 1.2 Nm | |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
