Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70837103
Ceratizit Material Number: 154259
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

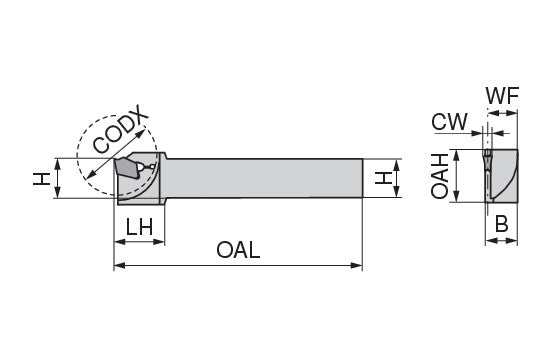

| Properties | ||
|---|---|---|

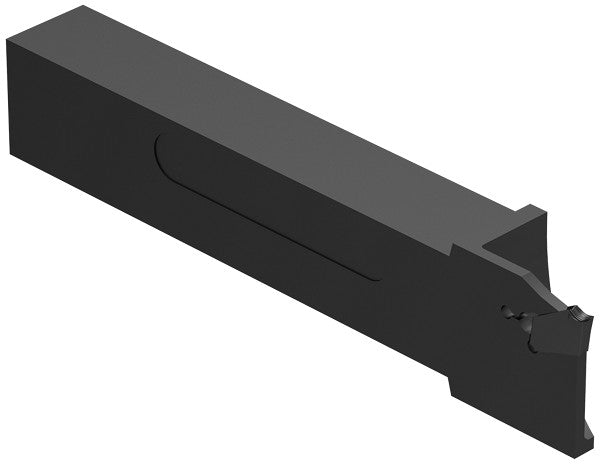

| Name | Ceratizit XLCEL 1212 M22 FX MonoClamp - Radial Monoholder 70837103 | |
| EDP # | 0710763 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 177 g |
| Shank height / H | 0.4724' | 12.000 mm |
| Shank width / B | 0.4724' | 12.000 mm |
| Cutting width / CW | 0.0866' | 2.200 mm |
| Functional width / WF | 0.4402' | 11.180 mm |
| Overall length / OAL | 5.9055' | 150.000 mm |
| Head length / LH | 0.7638' | 19.400 mm |
| Overall height / OAH | 0.8268' | 21.000 mm |
| Parting off diameter, max. / CODX | 1.1811' | 30.000 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
