Description
Ceratizit Article Number: 70836104
Ceratizit Material Number: 154260
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

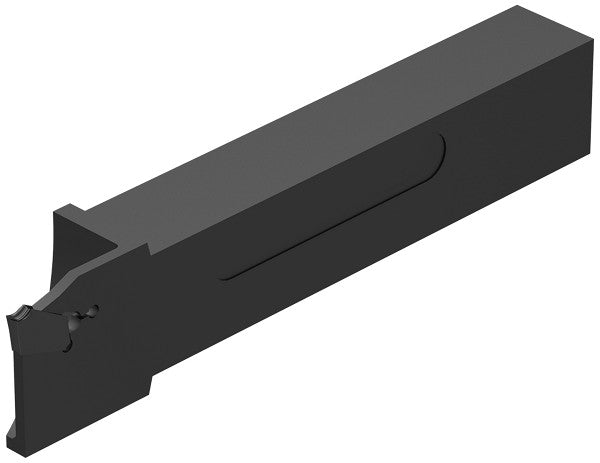

| Name | Ceratizit XLCER 1414 M22 FX CoreLine - Radial Monoholder 70836104 | |
| EDP # | 0710764 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 236 g |
| Product-Carbon-Footprint | B | |

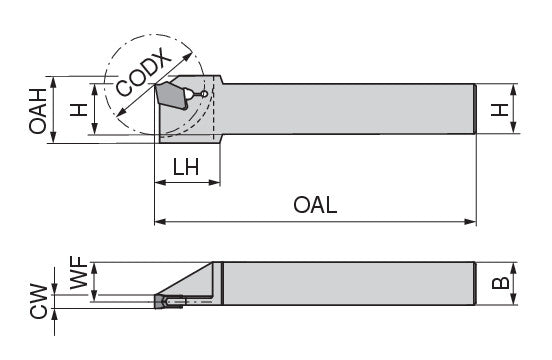

| Shank height / H | 0.5512" | 14.000 mm |
| Shank width / B | 0.5512" | 14.000 mm |
| Cutting width / CW | 0.0866" | 2.200 mm |
| Functional width / WF | 0.5189" | 13.180 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Head length / LH | 0.7638" | 19.400 mm |
| Overall height / OAH | 0.8268" | 21.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
