Description
Ceratizit Article Number: 70837109
Ceratizit Material Number: 154272
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

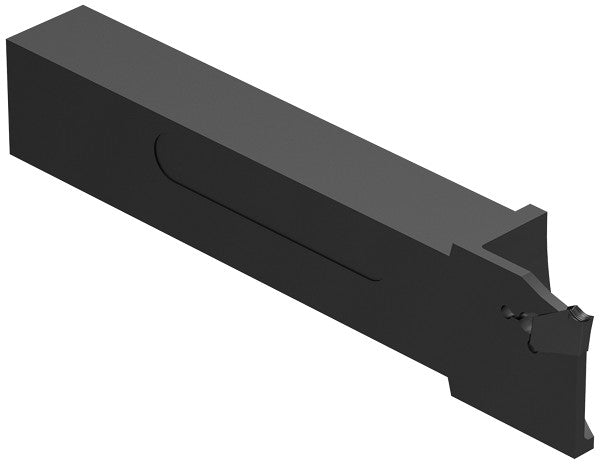

| Name | Ceratizit XLCFL 2016 K41 FX CoreLine - Radial Monoholder 70837109 | |
| EDP # | 0710775 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 11.0 oz | 303 g |
| Product-Carbon-Footprint | B | |

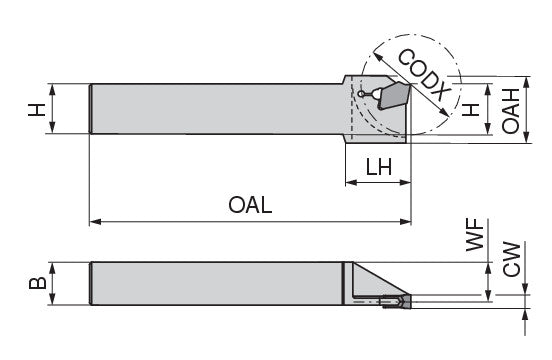

| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| Cutting width / CW | 0.1614" | 4.100 mm |
| Functional width / WF | 0.5669" | 14.400 mm |
| Overall length / OAL | 4.9213" | 125.000 mm |
| Head length / LH | 1.0394" | 26.400 mm |
| Overall height / OAH | 1.0236" | 26.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
