Description
Ceratizit Article Number: 70832109
Ceratizit Material Number: 154290
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

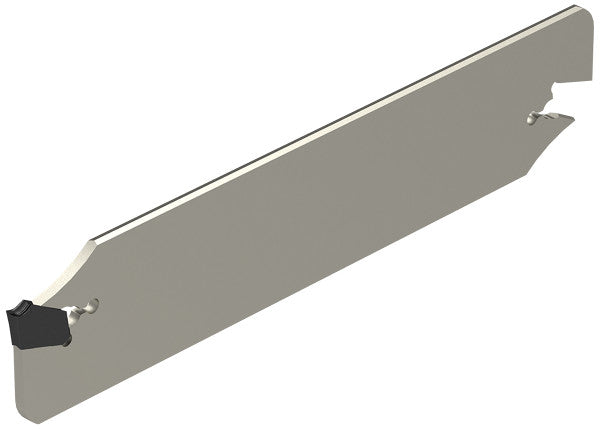

| Name | Ceratizit XLCEN 4609 S97 FX CoreLine - Radial Blade 70832109 | |
| EDP # | 0710786 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 24.0 oz | 693 g |
| Product-Carbon-Footprint | B | |

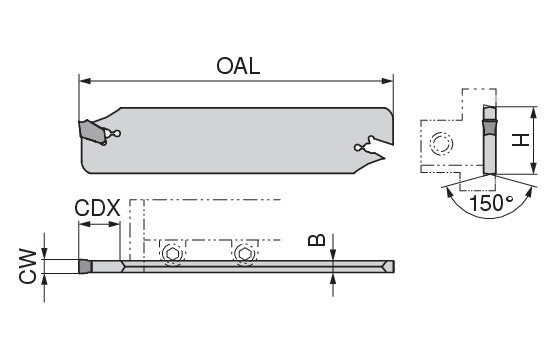

| Shank height / H | 1.8110" | 46.000 mm |
| Shank width / B | 0.3150" | 8.000 mm |
| Cutting width / CW | 0.3819" | 9.700 mm |
| Overall length / OAL | 9.8425" | 250.000 mm |
| Cutting depth maximum / CDX | 3.1496" | 80.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
