Description
Note that this item has been discontinued and will not be re-stocked.

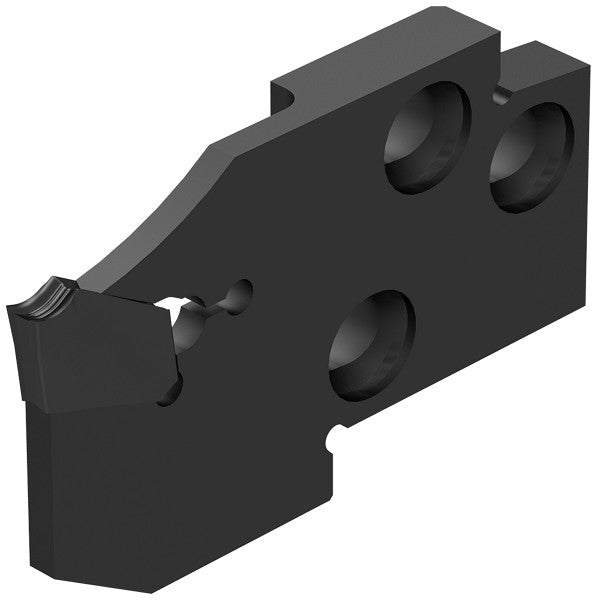

MSS-E32R45-FX3.1 MODULAR CLAMP MSS EXT. GROOVE MODULE FX For parting and grooving
Mat No: 195666, Article No: 70875432
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MSS-E32R45-FX3.1 MODULAR CLAMP MSS EXT. GROOVE MODULE FX 195666 (0710882) | |
| EDP # | 0710882 | |
| Weight | 3.9 oz | 110.7 g |
| Functional height HF | 1.2598 inch | 32 mm |
| Cutting width CW | 0.122 inch | 3.1 mm |
| Functional width WF | 0.185 inch | 4.7 mm |
| Functional length LF | 1.8504 inch | 47 mm |
| Shank height H | 1.4961 inch | 38 mm |
| Parting off diameter. max. CODX | 3.7795 inch | 96 mm |
| Cutting depth maximum CDX | 1.7717 inch | 45 mm |
| Designation | MSS-E32R45-FX3.1 | |
| Version | Right-hand | |
