Description
Ceratizit Article Number: 70865020
Ceratizit Material Number: 195678
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

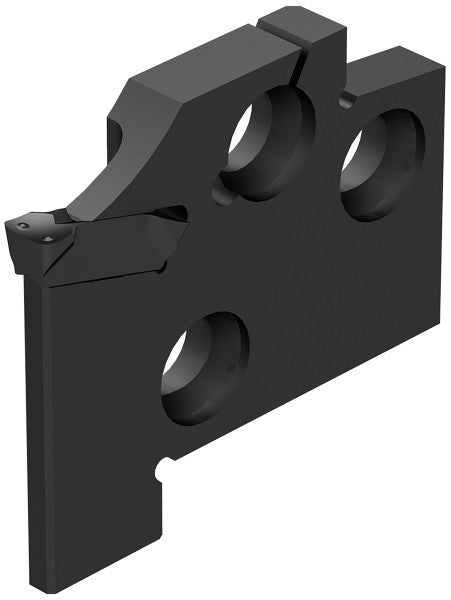

| Name | Ceratizit MSS-E20R12-GX16-1 CoreLine Radial Grooving Module ModularClamp 70865020 | |
| EDP # | 0710892 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 29.7 g |
| Product-Carbon-Footprint | B | |

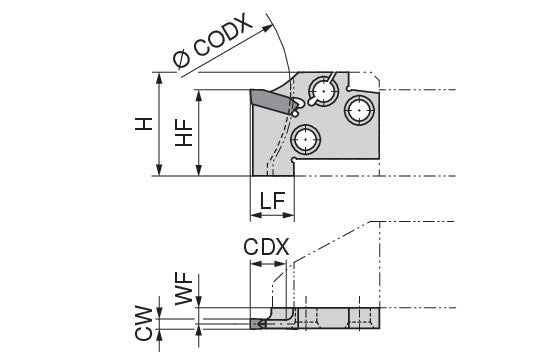

| Functional height / HF | 0.7874" | 20.000 mm |
| Functional width / WF | 0.1476" | 3.750 mm |
| Functional length / LF | 0.5118" | 13.000 mm |
| Shank height / H | 0.9449" | 24.000 mm |
| Cutting depth maximum / CDX | 0.4724" | 12.000 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
