Description
Ceratizit Article Number: 70850032
Ceratizit Material Number: 195722
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

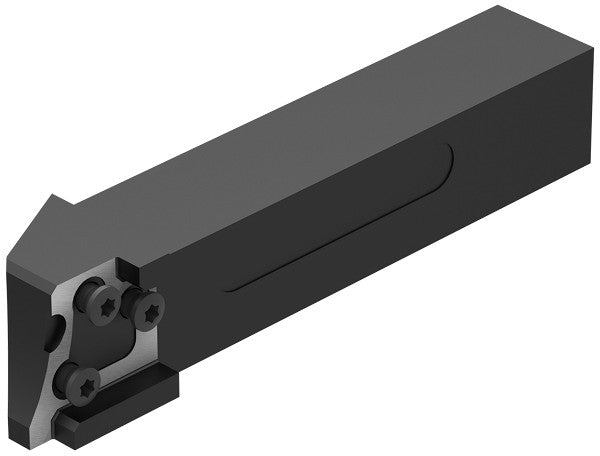

| Name | Ceratizit MSS-E32R00-3225N CoreLine Base Holder 0° ModularClamp 70850032 | |
| EDP # | 0710916 | |
| Weight (1 pc.) | 35.0 oz | 1003 g |
| Product-Carbon-Footprint | B | |

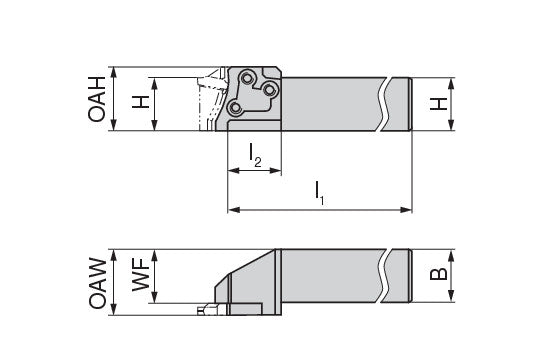

| Shank height / H | 1.2598" | 32.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall width / OAW | 1.2205" | 31.000 mm |
| Overall height / OAH | 1.4961" | 38.000 mm |
| Functional width / WF | 1.0039" | 25.500 mm |
| L1 | 6.2992" | 160.000 mm |
| L2 | 1.2598" | 32.000 mm |
| Head length / LH | 1.4764" | 37.500 mm |
| Overall length / OAL | 6.5157" | 165.500 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
