Ceratizit PWLNL 3225 P08-T CoreLine 95° Toolholder With Lever Clamping 70543032 (0710923)
Ceratizit PWLNL 3225 P08-T CoreLine 95° Toolholder With Lever Clamping 70543032 (0710923)
Couldn't load pickup availability
Ceratizit Article Number: 70543032
Ceratizit Material Number: 217054
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PWLNL 3225 P08-T CoreLine 95° Toolholder With Lever Clamping 70543032 | |
| EDP # | 0710923 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 38.0 oz | 1089 g |
| Insert | WNMG 0804 | |

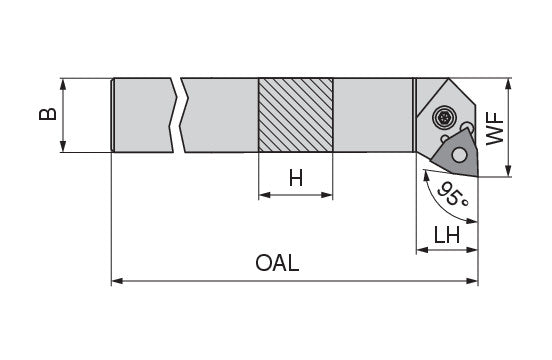

| Shank height / H | 1.2598" | 32.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 6.6929" | 170.000 mm |
| Head length / LH | 0.8661" | 22.000 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Overall height / OAH | 1.4173" | 36.000 mm |
| torque moment | 4 Nm | |
| Clamping system | Lever clamping for negative indexable inserts | |
| holder form | PWLN 95° | |
| Version | Left | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
