Description
Note that this item has been discontinued and will not be re-stocked.

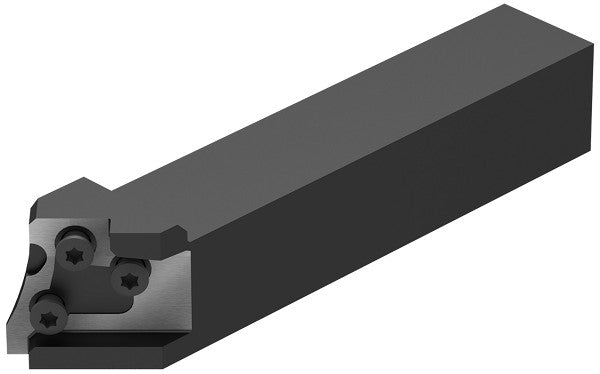

MSS-E25L45-2525L MODULAR CLAMP MSS HOLDER 45°
Mat No: 217358, Article No: 70853025
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MSS-E25L45-2525L MODULAR CLAMP MSS HOLDER 45° 217358 (0710933) | |
| EDP # | 0710933 | |
| Weight | 24.4 oz | 690.5 g |
| Shank height H | 0.9843 inch | 25 mm |
| Shank width B | 0.9843 inch | 25 mm |
| Overall width OAW | 1.0236 inch | 26 mm |
| Overall height OAH | 1.1811 inch | 30 mm |
| Functional width WF | 0.7087 inch | 18 mm |
| L1 | 5.5118 inch | 140 mm |
| L2 | 0.9843 inch | 25 mm |
| Head length LH | 0.9843 inch | 25 mm |
| Overall length OAL | 5.5118 inch | 140 mm |
| Designation | MSS-E25L45-2525L | |
| Version | Left-hand | |
