Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70851012
Ceratizit Material Number: 227018
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

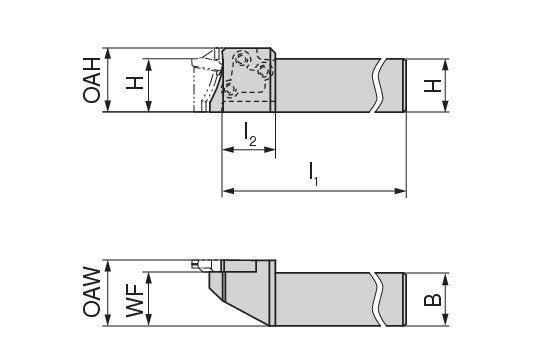

| Properties | ||
|---|---|---|

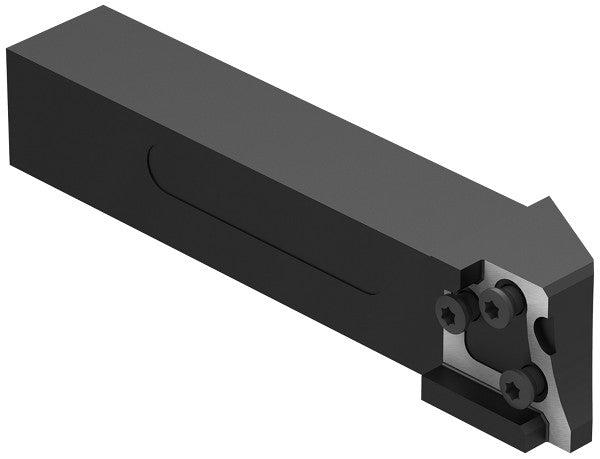

| Name | Ceratizit MSS-E12L00-1212E ModularClamp Tool Holder 0° 70851012 | |
| EDP # | 0710946 | |
| Weight (1 pc.) | 3.0 oz | 95.2 g |
| Shank height / H | 0.4724' | 12.000 mm |
| Shank width / B | 0.4724' | 12.000 mm |
| Overall width / OAW | 0.6004' | 15.250 mm |
| Overall height / OAH | 0.5709' | 14.500 mm |
| Functional width / WF | 0.4626' | 11.750 mm |
| L1 | 2.7559' | 70.000 mm |
| L2 | 0.4724' | 12.000 mm |
| Head length / LH | 0.5984' | 15.200 mm |
| Overall length / OAL | 2.8819' | 73.200 mm |
| Version | Left-hand | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
