Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70565220
Ceratizit Material Number: 254393
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

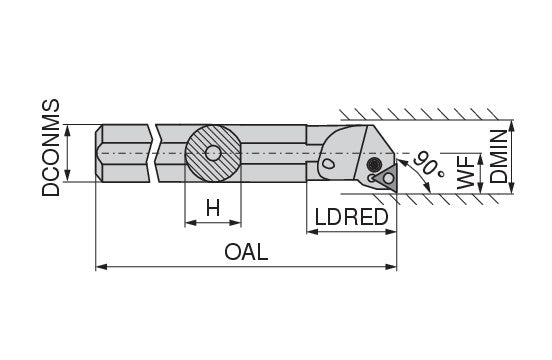

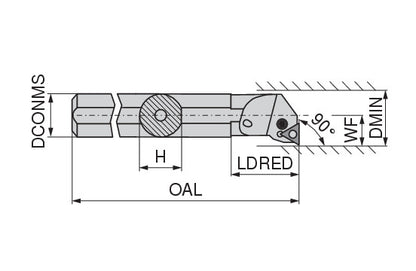

| Properties | ||
|---|---|---|
| Name | Ceratizit A20Q PTFNL 11 MaxiLock-N - 90° - Boring Bar With Lever Clamping 70565220 | |
| EDP # | 0711135 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 408 g |
| Mounting spigot diameter / DCONMS | 0.7874' | 20.000 mm |
| Shank height / H | 0.7283' | 18.500 mm |
| Overall length / OAL | 7.0866' | 180.000 mm |
| Reduced body diameter length / LDRED | 1.2598' | 32.000 mm |
| Functional width / WF | 0.5118' | 13.000 mm |
| Minimum bore diameter / DMIN | 0.9843' | 25.000 mm |
| Insert | TNM. 1103 | |
| Body diameter, reduced / BDRED | 0.7677' | 19.500 mm |
| torque moment | 2.2 Nm | |
| Version | Left-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
