Description
Note that this item has been discontinued and will not be re-stocked.

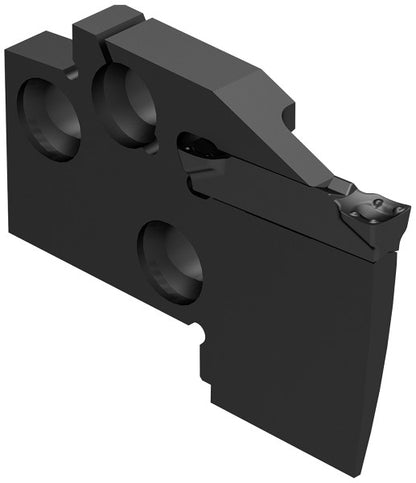

MSS-E32L15-GX24-3 A100-150 MODULAR CLAMP MSS AX. GROOVE MODULE GX24 For axial grooving For face turning
Mat No: 254428, Article No: 70891302
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MSS-E32L15-GX24-3 A100-150 MODULAR CLAMP MSS AX. GROOVE MODULE GX24 254428 (0711170) | |
| EDP # | 0711170 | |
| Weight | 3.0 oz | 83.8 g |
| Functional height HF | 1.2598 inch | 32 mm |
| Functional width WF | 0.1744 inch | 4.43 mm |
| Functional length LF | 0.8661 inch | 22 mm |
| Shank height H | 1.4961 inch | 38 mm |
| Cutting depth maximum CDX | 0.5906 inch | 15 mm |
| Axial groove outside diameter maximum DAXX | 5.9055 inch | 150 mm |
| Axial groove outside diameter minimum DAXN | 3.937 inch | 100 mm |
| Designation | MSS-E32L15-GX24-3 A100-150 | |
| Version | Left-hand | |
