Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70887032
Ceratizit Material Number: 269434
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

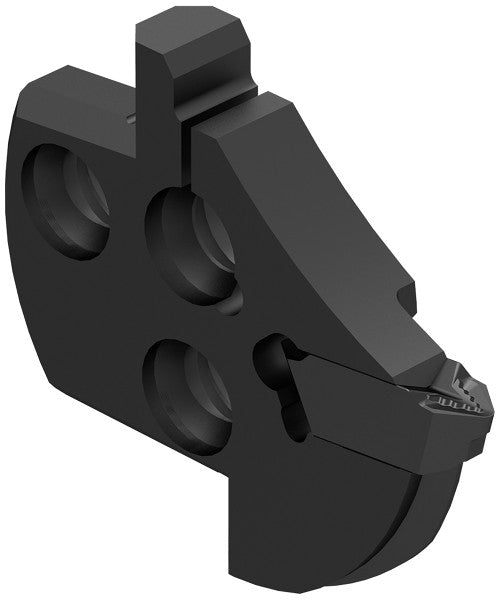

| Name | Ceratizit MSS-I32R-TC16-1 ModularClamp Threading Module For Internal Threads 70887032 | |
| EDP # | 0711186 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 27.4 g |
| Body length / LB | 0.2441' | 6.200 mm |
| Functional width / WF | 0.2047' | 5.200 mm |
| Shank height / H | 1.2677' | 32.200 mm |
| Cutting depth maximum / CDX | 0.2756' | 7.000 mm |
| Minimum bore diameter / DMIN | 1.5748' | 40.000 mm |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
