Description
Ceratizit Article Number: 70856020
Ceratizit Material Number: 269447
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

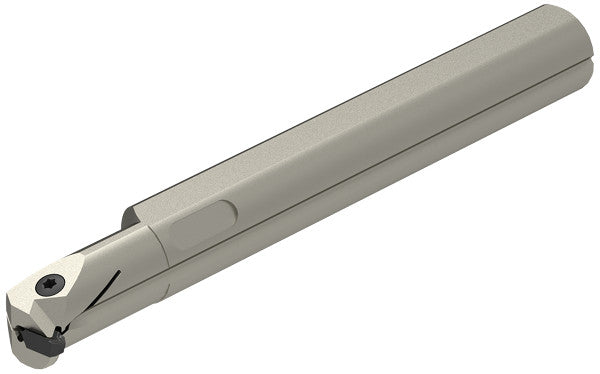

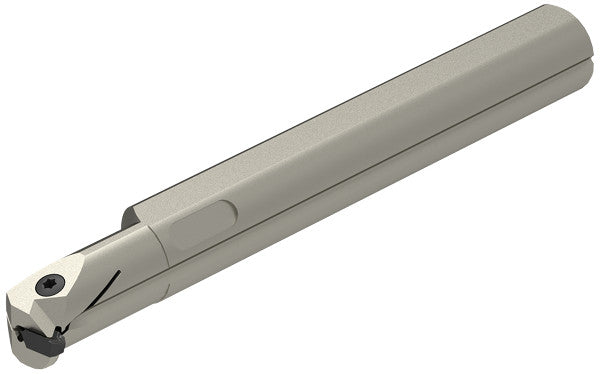

| Name | Ceratizit I20R90-2D-TC16 Monobloc Boring Bar Internal Thread 70856020 | |
| EDP # | 0711197 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 26.0 oz | 728 g |
| Product-Carbon-Footprint | B | |

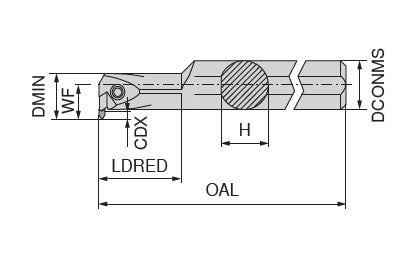

| Shank height / H | 0.9055" | 23.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Minimum bore diameter / DMIN | 0.9843" | 25.000 mm |
| Cutting depth maximum / CDX | 0.1969" | 5.000 mm |
| Functional width / WF | 0.6890" | 17.500 mm |
| Overall length / OAL | 7.8740" | 200.000 mm |
| Reduced body diameter length / LDRED | 1.5748" | 40.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
