Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70260450
Ceratizit Material Number: 330377
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7026080200, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

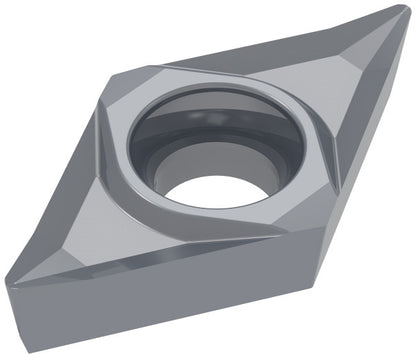

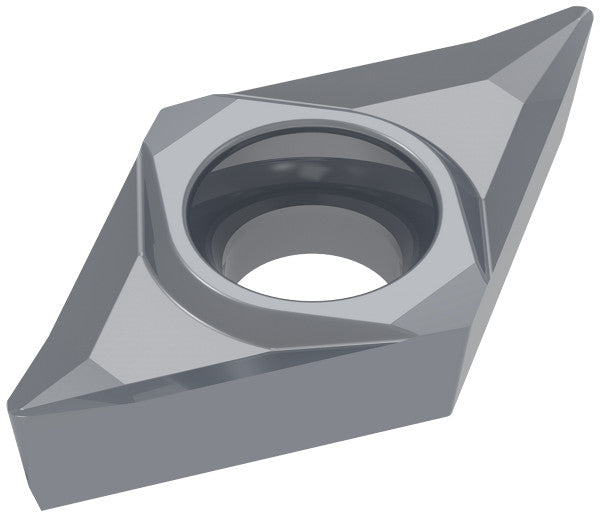

| Name | Ceratizit DCGT 070202FN-27 AMZ 70260450 | |
| EDP # | 0711250 | |
| Weight (1 pc.) | 0.04 oz | 1.2 g |
| designation | 070202FN | |
| Corner radius / RE | 0.0079' | 0.200 mm |
| Cutting edge length / L | 0.3051' | 7.750 mm |
| Insert thickness / S | 0.0937' | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102' | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500' | 6.350 mm |
| Chip breaker (Ceratizit) / CBMD | -27 | |
| Coating name / Grade (Ceratizit) / COATN | AMZ | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
