Description
Ceratizit Article Number: 50428901
Ceratizit Material Number: 338071
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

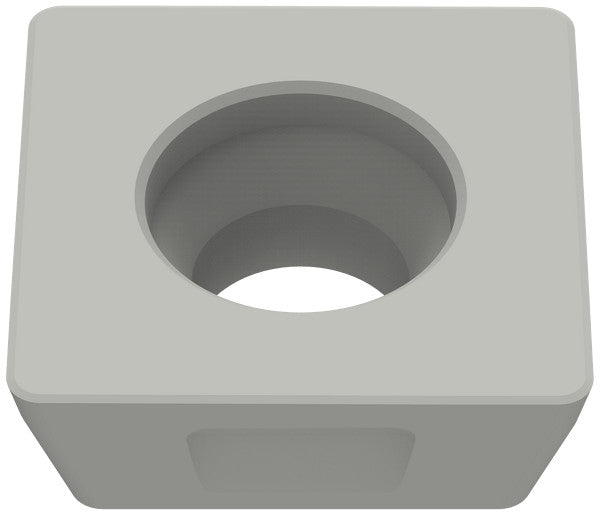

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SDHW 120508SR TCM10 CoreLine - CERMET Milling indexable Insert - 50428901 | |
| EDP # | 0711259 | |
| Weight (1 pc.) | 0.1 oz | 3.5 g |
| designation | 120508SR | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Trailing edge length / BS | 0.0866" | 2.200 mm |
| Insert thickness / S | 0.1969" | 5.000 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | E | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
