Description
Ceratizit Article Number: 70287600
Ceratizit Material Number: 358454
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

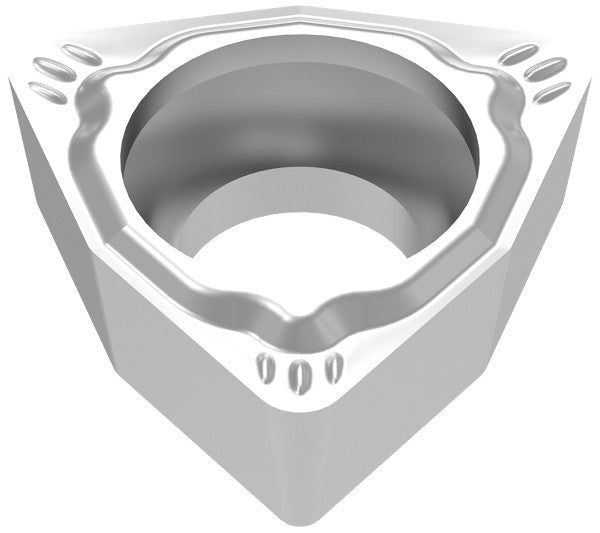

| Name | Ceratizit WCGT 020102FN-SF H216T 70287600 | |
| EDP # | 0711358 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.01 oz | 0.2 g |
| designation | 020102EN | |

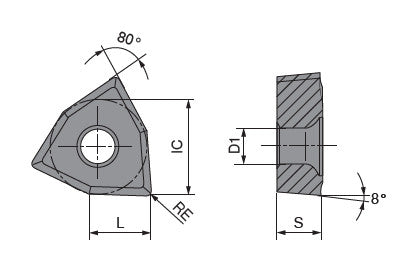

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.1067" | 2.710 mm |
| Insert thickness / S | 0.0626" | 1.590 mm |
| Fixing hole diameter / D1 | 0.0827" | 2.100 mm |
| Inscribed circle diameter / IC | 0.1563" | 3.970 mm |
| Insert index count / NOI | 3 | |
| Chip breaker (Ceratizit) / CBMD | -SF | |
| Coating name / Grade (Ceratizit) / COATN | H216T | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
