Description
Ceratizit Article Number: 7870443242
Ceratizit Material Number: 1347138
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

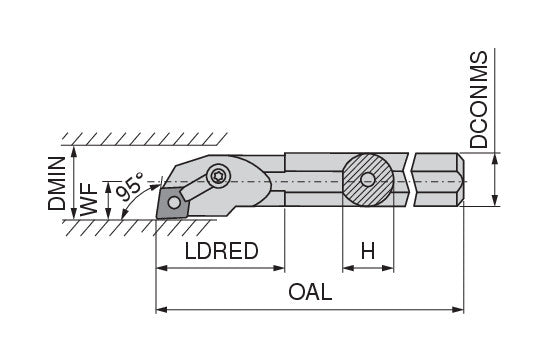

| Name | Ceratizit S32V MCLNR 4 CoreLine - 95° - Boring Bar With Top Clamping 7870443242 | |
| EDP # | 0711690 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Mounting spigot diameter / DCONMS | 2.0000" | 50.800 mm |
| Shank height / H | 1.8700" | 47.500 mm |
| Overall length / OAL | 16.0000" | 406.400 mm |
| Reduced body diameter length / LDRED | 4.0000" | 101.600 mm |
| Functional width / WF | 1.2810" | 32.540 mm |
| Minimum bore diameter / DMIN | 2.5620" | 65.070 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
