Description
Ceratizit Article Number: 7870643242
Ceratizit Material Number: 1347159
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit S32V MDUNR 4 CoreLine - MDUL 93° - Boring Bar With Top Clamping 7870643242 | |
| EDP # | 0711709 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

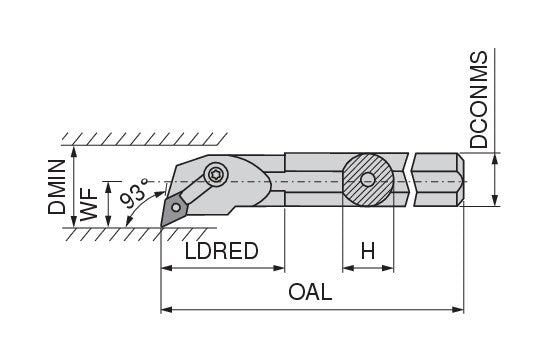

| Mounting spigot diameter / DCONMS | 2.0000" | 50.800 mm |
| Shank height / H | 1.8700" | 47.500 mm |
| Overall length / OAL | 16.0000" | 406.400 mm |
| Reduced body diameter length / LDRED | 4.0000" | 101.600 mm |
| Functional width / WF | 1.3750" | 34.920 mm |
| Minimum bore diameter / DMIN | 3.0000" | 76.200 mm |
| Version | Right | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
