Description
Ceratizit Article Number: 7871144050
Ceratizit Material Number: 1347198
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

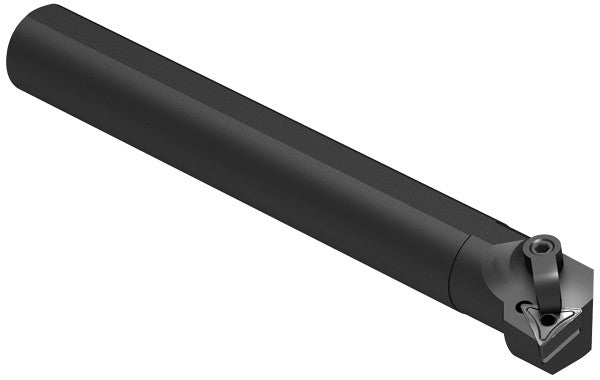

| Name | Ceratizit S40V MTFNL 4 CoreLine - 90° - Boring Bar With Top Clamping 7871144050 | |
| EDP # | 0711736 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

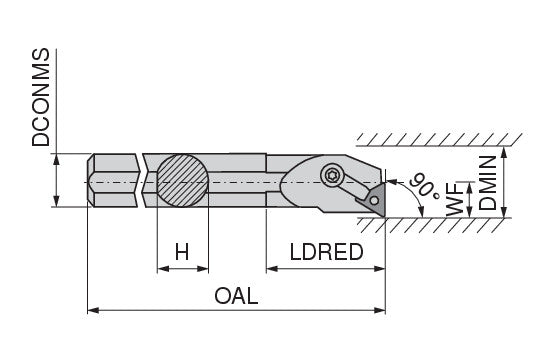

| Mounting spigot diameter / DCONMS | 2.5000" | 63.500 mm |
| Shank height / H | 2.3800" | 60.450 mm |
| Overall length / OAL | 16.0000" | 406.400 mm |
| Reduced body diameter length / LDRED | 4.0000" | 101.600 mm |
| Functional width / WF | 1.5310" | 38.890 mm |
| Minimum bore diameter / DMIN | 3.0620" | 77.770 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
