Description
Ceratizit Article Number: 7871920617
Ceratizit Material Number: 1347221
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit S06M SCLCL 2 CoreLine - 95° - Boring Bar With Screw Clamping 7871920617 | |
| EDP # | 0711752 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Composites (Black) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

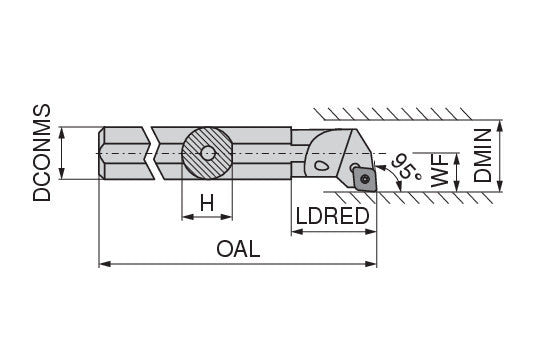

| Mounting spigot diameter / DCONMS | 0.3750" | 9.520 mm |
| Shank height / H | 0.3400" | 8.640 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Reduced body diameter length / LDRED | 0.8300" | 21.080 mm |
| Functional width / WF | 0.2500" | 6.350 mm |
| Minimum bore diameter / DMIN | 0.5000" | 12.700 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
