Description
Ceratizit Article Number: 7872091626
Ceratizit Material Number: 1347229
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit S16T SDUCR 3M CoreLine - 93° - Boring Bar With Screw Clamping 7872091626 | |
| EDP # | 0711759 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

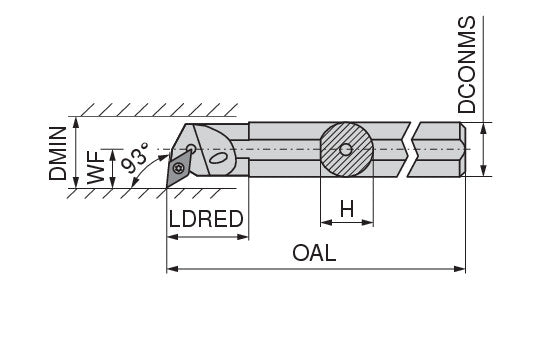

| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Shank height / H | 0.9100" | 23.110 mm |
| Overall length / OAL | 12.0000" | 304.800 mm |
| Reduced body diameter length / LDRED | 1.8100" | 45.970 mm |
| Functional width / WF | 0.7500" | 19.050 mm |
| Minimum bore diameter / DMIN | 1.5000" | 38.100 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
