Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 50443650
Ceratizit Material Number: 11008116
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

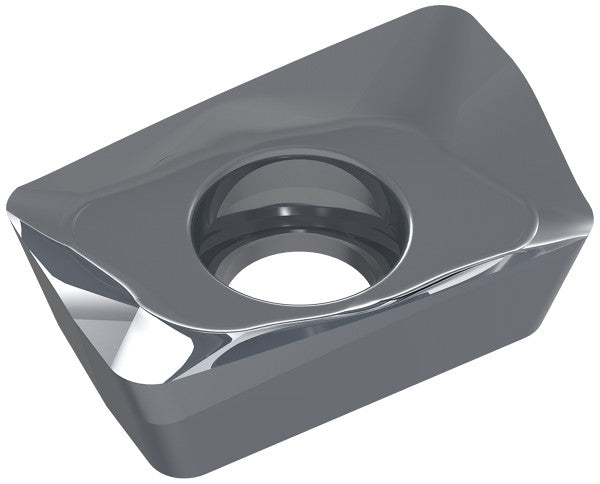

| Name | Ceratizit APHT 100308FR-27P AMZ 50443650 | |
| EDP # | 0711877 | |
| Weight (1 pc.) | 0.1 oz | 3.2 g |
| designation | 100308FR | |
| Corner radius / RE | 0.0315' | 0.800 mm |
| Inscribed circle diameter / IC | 0.2618' | 6.650 mm |
| Fixing hole diameter / D1 | 0.1102' | 2.800 mm |
| Cutting edge length / L | 0.4252' | 10.800 mm |
| Trailing edge length / BS | 0.0669' | 1.700 mm |
| Insert thickness / S | 0.1378' | 3.500 mm |
| Clearance angle major / AN | 11 ° | |
| Coating name / Grade (Ceratizit) / COATN | AMZ | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
