Description
Ceratizit Article Number: 50428899
Ceratizit Material Number: 11009064
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

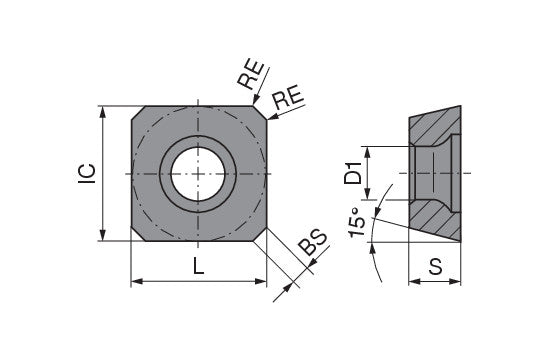

| Properties | ||
|---|---|---|

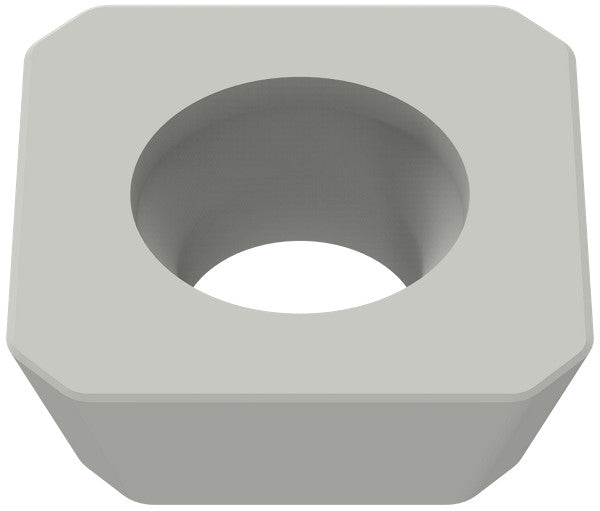

| Name | Ceratizit SDHW 1204AESN-R TCM10 CoreLine CERMET Milling indexable Insert 50428899 | |
| EDP # | 0711878 | |
| Weight (1 pc.) | 0.2 oz | 4.3 g |
| designation | 1204AESN | |
| Corner radius / RE | 0.0394" | 1.000 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Trailing edge length / BS | 0.0685" | 1.740 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Insert length / INSL | 0.6220" | 15.800 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | E | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
