Description
Ceratizit Article Number: 70286628
Ceratizit Material Number: 11078800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

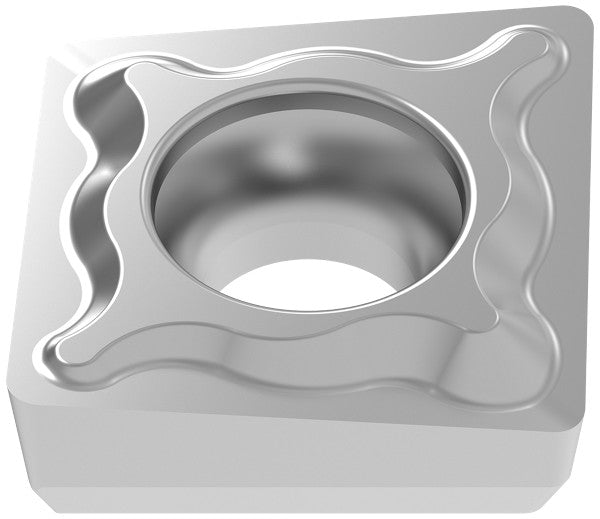

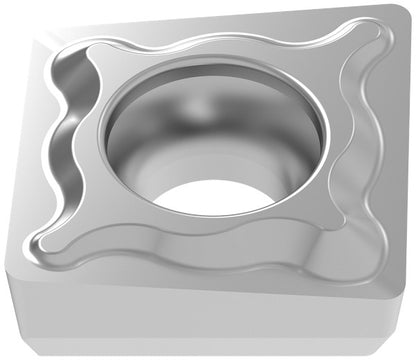

| Name | Ceratizit XCET 10T308FN-27P H216T EcoCut HM indexable Insert 70286628 | |
| EDP # | 0711984 | |
| Weight (1 pc.) | 0.2 oz | 5.7 g |

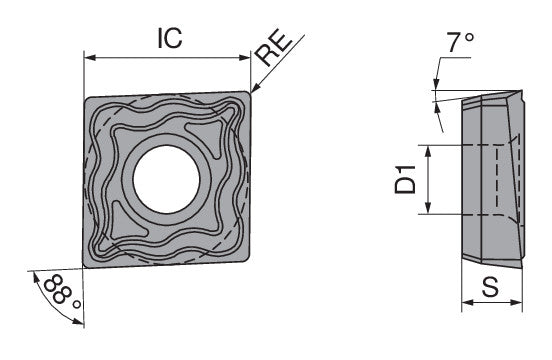

| Corner radius / RE | 0.0315" | 0.800 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| designation | 10T308FN | |
| Inscribed circle diameter / IC | 0.4173" | 10.600 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
