Description
Ceratizit Article Number: 70895212
Ceratizit Material Number: 11082505
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

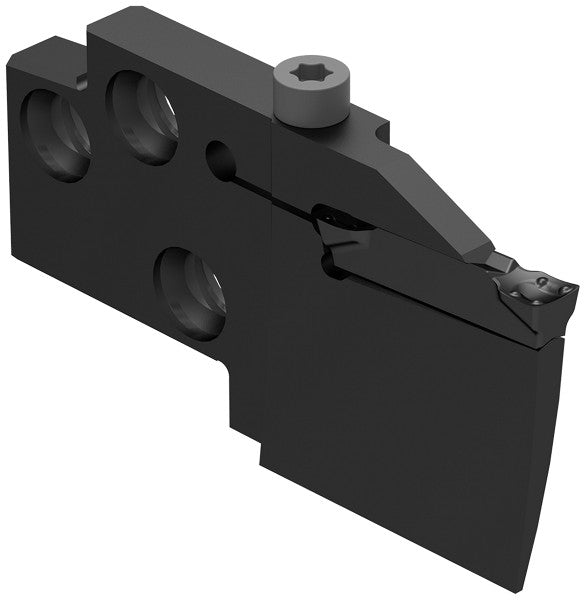

| Name | Ceratizit MSS-E25L25-GX24-4 AS70-100 CoreLine Axial Grooving Module Long ModularClamp 70895212 | |
| EDP # | 0712005 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 77.5 g |

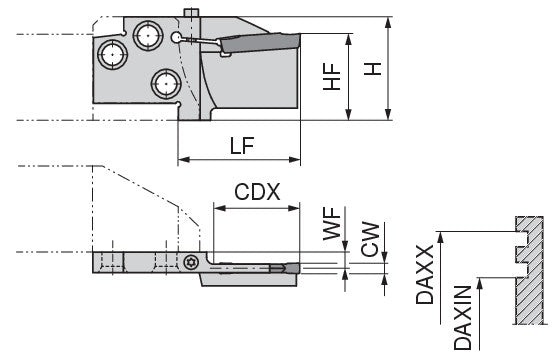

| Functional height / HF | 0.9843" | 25.000 mm |
| Cutting width / CW | 0.2362" | 6.000 mm |
| Functional width / WF | 0.1535" | 3.900 mm |
| Functional length / LF | 1.3780" | 35.000 mm |
| Shank height / H | 1.1811" | 30.000 mm |
| Cutting depth maximum / CDX | 0.9843" | 25.000 mm |
| Axial groove inside diameter minimum / DAXIN | 2.2835" | 58.000 mm |
| Axial groove outside diameter maximum / DAXX | 3.9370" | 100.000 mm |
| Version | Left | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
