Description
Ceratizit Article Number: 7886012500
Ceratizit Material Number: 11104248
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

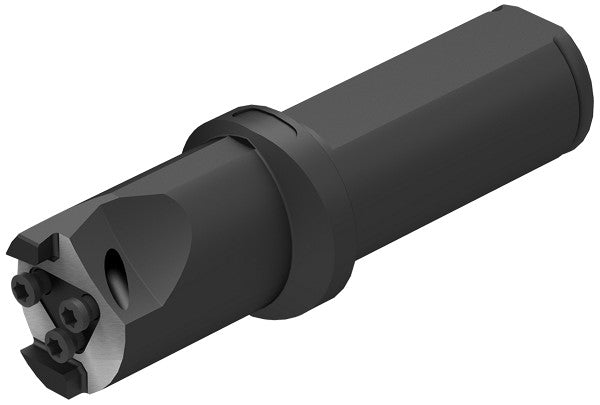

| Name | Ceratizit MSS-I32R90-1.5D-E CoreLine Boring Bars GX ModularClamp 7886012500 | |
| EDP # | 0712079 | |
| Weight (1 pc.) | 26.0 oz | 727 g |

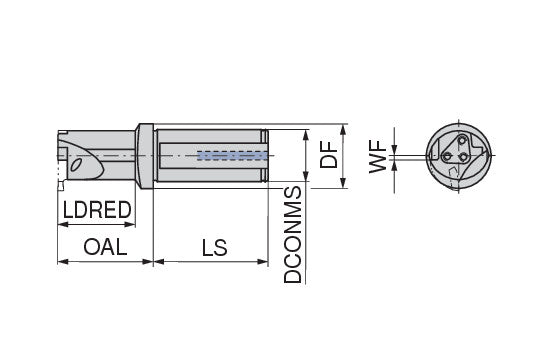

| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Overall length / OAL | 2.3228" | 59.000 mm |
| Shank length / LS | 2.5000" | 63.500 mm |
| Reduced body diameter length / LDRED | 1.8900" | 48.010 mm |
| Shank height / H | 1.4252" | 36.200 mm |
| Flange diameter / DF | 1.5750" | 40.000 mm |
| Functional width / WF | 0.0790" | 2.010 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
