Description
Ceratizit Article Number: 7886203800
Ceratizit Material Number: 11104256
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

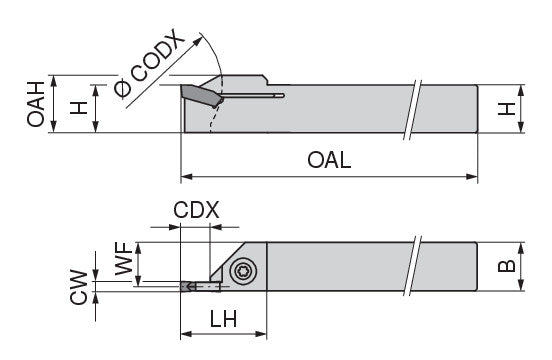

| Properties | ||
|---|---|---|
| Name | Ceratizit E10R00-06-GX09-E CoreLine Radial Monoholder 7886203800 | |
| EDP # | 0712086 | |
| Weight (1 pc.) | 4.0 oz | 109 g |
| Shank height / H | 0.3750" | 9.520 mm |
| Shank width / B | 0.3750" | 9.520 mm |
| Functional width / WF | 0.3490" | 8.860 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 0.7090" | 18.010 mm |
| Overall height / OAH | 0.4720" | 11.990 mm |
| Cutting depth maximum / CDX | 0.2700" | 6.860 mm |
| Cutting width range / CW | 2.00 - 3.50 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
