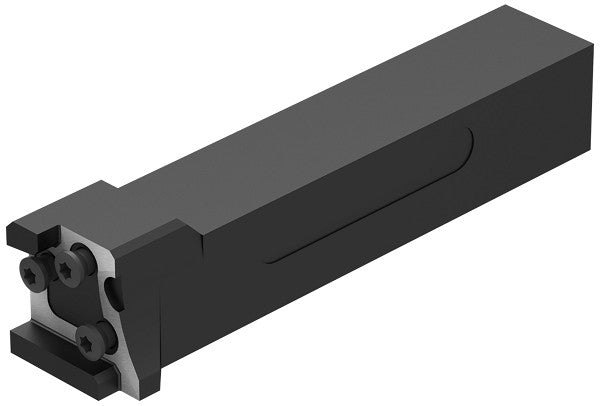

Ceratizit MSS-E20R90-12-E CoreLine Tool Holder 90° ModularClamp 7885407500 (0712098)
Ceratizit MSS-E20R90-12-E CoreLine Tool Holder 90° ModularClamp 7885407500 (0712098)
Couldn't load pickup availability
Ceratizit Article Number: 7885407500
Ceratizit Material Number: 11104279
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

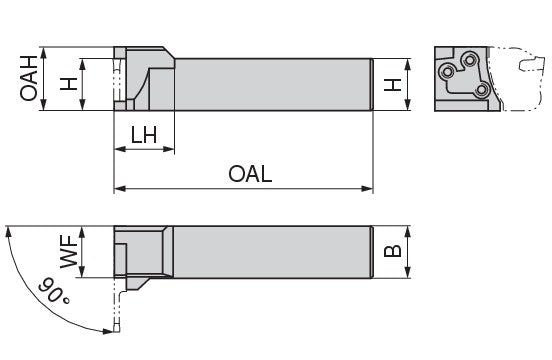

| Properties | ||
|---|---|---|
| Name | Ceratizit MSS-E20R90-12-E CoreLine Tool Holder 90° ModularClamp 7885407500 | |
| EDP # | 0712098 | |
| Weight (1 pc.) | 13.0 oz | 366 g |
| Shank height / H | 0.7500" | 19.050 mm |
| Shank width / B | 0.7500" | 19.050 mm |
| Overall width / OAW | 0.9646" | 24.500 mm |
| Overall height / OAH | 0.9070" | 23.040 mm |
| Functional width / WF | 0.7870" | 19.990 mm |
| L1 | 4.5000" | 114.300 mm |
| Head length / LH | 0.7830" | 19.890 mm |
| Overall length / OAL | 4.5000" | 114.300 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
