Description
Ceratizit Article Number: 7888305000
Ceratizit Material Number: 11104300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

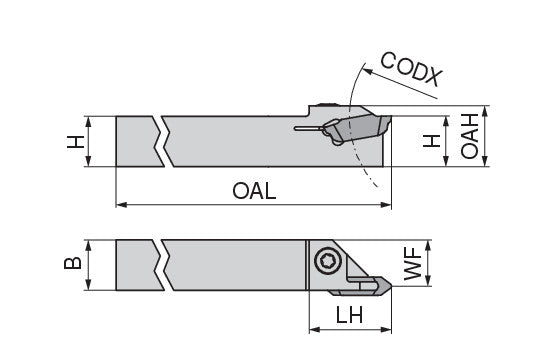

| Properties | ||
|---|---|---|
| Name | Ceratizit E12L00-08-TC16-E CoreLine Monobloc Tool For External Thread Cutting 7888305000 | |
| EDP # | 0712109 | |
| Weight (1 pc.) | 8.0 oz | 230 g |
| Shank height / H | 0.5000" | 12.700 mm |
| Shank width / B | 0.5000" | 12.700 mm |
| Functional width / WF | 0.4610" | 11.710 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 0.7680" | 19.510 mm |
| Overall height / OAH | 0.5980" | 15.190 mm |
| Cutting depth maximum / CDX | 0.3940" | 10.010 mm |
| Threads per inch range / TPI - R / TPI | 28 - 8 | |
| Thread pitch range / TP | 0.5 - 3 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
