Description
Ceratizit Article Number: 50721125
Ceratizit Material Number: 11132748
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

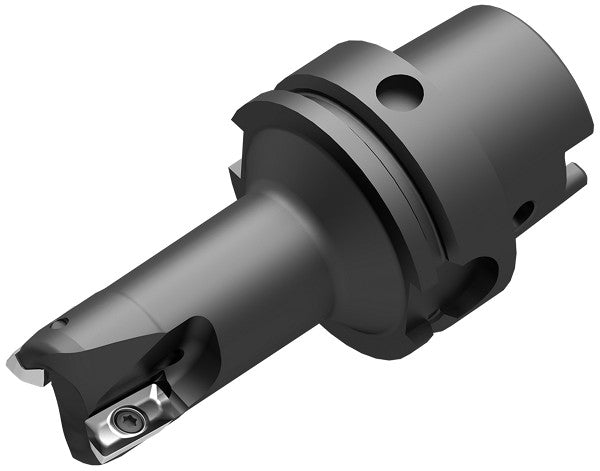

| Name | Ceratizit MHPC.25.R.02-19-H63A-63 MaxiMill HPC-19 Milling Cutter With HSK 63-A 50721125 | |
| EDP # | 0712157 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 34.0 oz | 956 g |

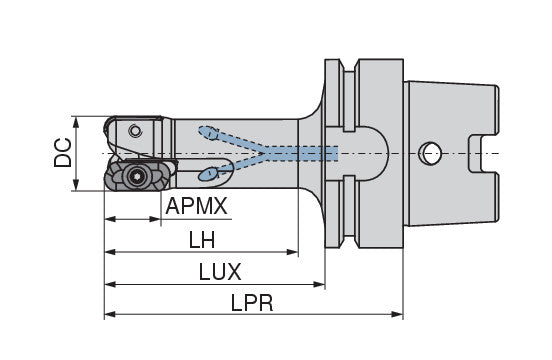

| Cutting diameter / DC | 0.9843" | 25.000 mm |
| Face mounted insert count / ZNF | 2 | |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Head length / LH | 2.4803" | 63.000 mm |
| Usable length maximum / LUX | 2.9134" | 74.000 mm |
| Rotational speed maximum / RPMX | 42300 1/min. | |
| Designation | MHPC.25.R.02-19-H63A-63 | |
| torque moment | 5 Nm | |
| Depth of cut maximum / APMX | 0.7087" | 18.000 mm |
| Insert | XDHX 1904.. | |
| Balance quality | G 6,3 | |
| Machine interface size | HSK-A 63 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
