Description
Ceratizit Article Number: 55107032
Ceratizit Material Number: 11134449
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

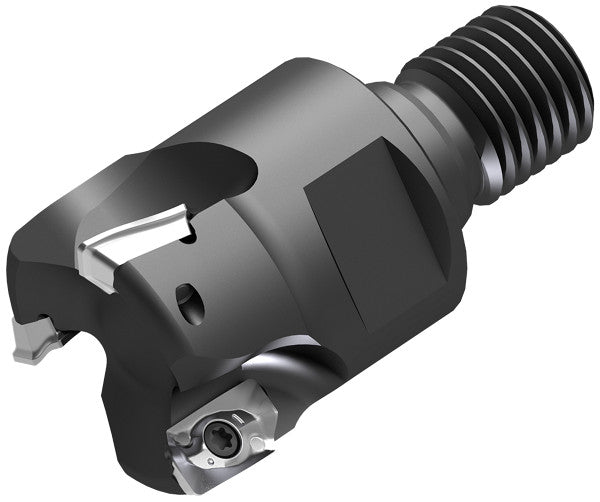

| Name | Ceratizit GHSC.32.R.03-11 MaxiMill HSC-11 Screw In Cutter 55107032 | |
| EDP # | 0712183 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 184 g |

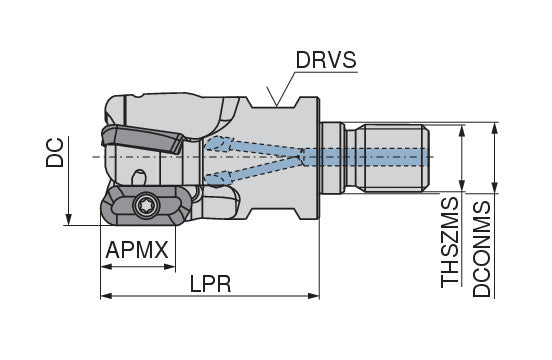

| Cutting diameter / DC | 1.2598" | 32.000 mm |
| Face mounted insert count / ZNF | 3 | |
| Protruding length / LPR | 1.3780" | 35.000 mm |
| Connection thread nominal size / THSZMS | M16 | |
| Mounting spigot diameter / DCONMS | 0.6693" | 17.000 mm |
| Drive size / DRVS | 0.9449" | 24.000 mm |
| Rotational speed maximum / RPMX | 39800 1/min. | |
| Insert | XDHT 11T3.. | |
| torque moment | 1.8 Nm | |
| Depth of cut maximum / APMX | 0.3937" | 10.000 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
