Description
Ceratizit Article Number: 50721140
Ceratizit Material Number: 11136001
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

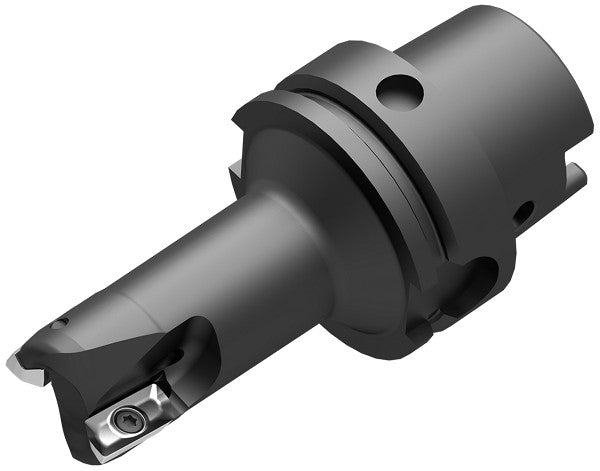

| Name | Ceratizit MHPC.40.R.03-19-H63A-80 CoreLine HPC-19 Milling Cutter With HSK 63-A 50721140 | |
| EDP # | 0712245 | |
| Weight (1 pc.) | 53.0 oz | 1492 g |

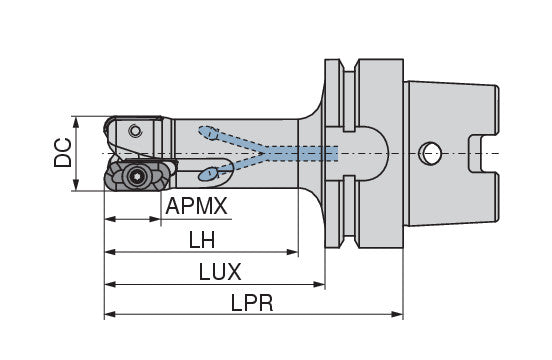

| Cutting diameter / DC | 1.5748" | 40.000 mm |
| Face mounted insert count / ZNF | 3.0000" | 76.200 mm |
| Protruding length / LPR | 4.7244" | 120.000 mm |
| Head length / LH | 3.1496" | 80.000 mm |
| Usable length maximum / LUX | 3.7008" | 94.000 mm |
| Rotational speed maximum / RPMX | 35700 1/min. | |
| Designation | MHPC.40.R.03-19-H63A-80 | |
| torque moment | 5 Nm | |
| Depth of cut maximum / APMX | 0.7087" | 18.000 mm |
| Insert | XDHX 1904.. | |
| Balance quality | G 6,3 | |
| Machine interface size | HSK-A 63 | |
| Product-Carbon-Footprint | B | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
