Description
Ceratizit Article Number: 7886226300
Ceratizit Material Number: 11142636
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

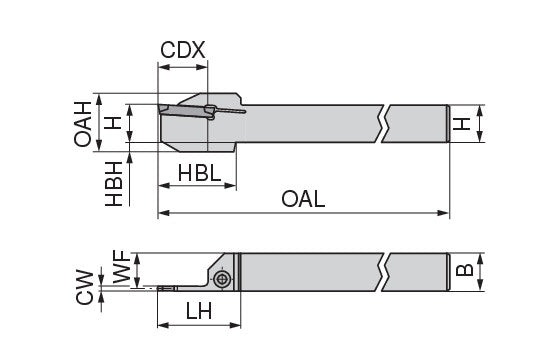

| Properties | ||
|---|---|---|

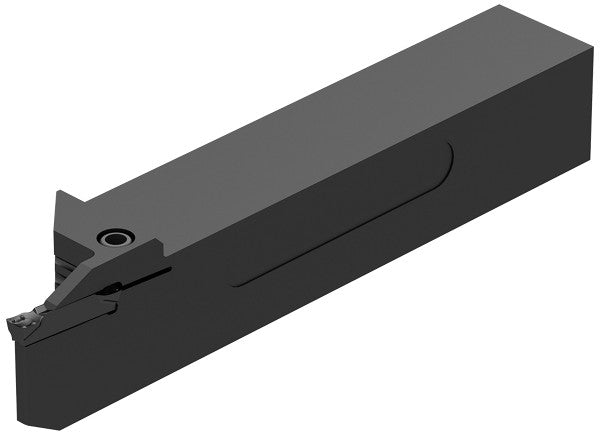

| Name | Ceratizit E16R0021-10C-GX24-2-E CoreLine Radial Monoholder 7886226300 | |
| EDP # | 0712259 | |
| Weight (1 pc.) | 10.0 oz | 271 g |
| Shank height / H | 0.6250" | 15.880 mm |
| Shank width / B | 0.6250" | 15.880 mm |
| Functional width / WF | 0.5860" | 14.880 mm |
| Overall length / OAL | 5.0000" | 127.000 mm |
| Head length / LH | 1.3780" | 35.000 mm |
| Head bottom offset length / HBL | 1.2600" | 32.000 mm |
| Overall height / OAH | 0.9840" | 24.990 mm |
| Cutting depth maximum / CDX | 0.8270" | 21.010 mm |
| Head bottom offset height / HBH | 0.1620" | 4.110 mm |
| Cutting width range / CW | 2.76 - 3.75 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
