Description
Ceratizit Article Number: 7886340000
Ceratizit Material Number: 11142653
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

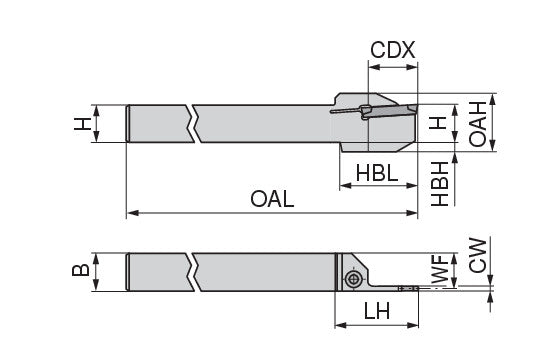

| Properties | ||
|---|---|---|

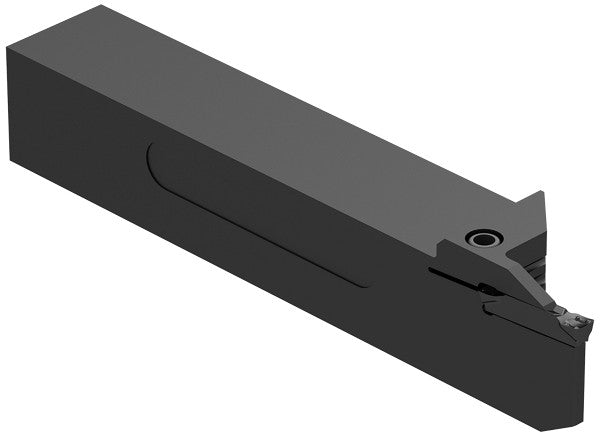

| Name | Ceratizit E25L0021-16D-GX24-4-E CoreLine Radial Monoholder 7886340000 | |
| EDP # | 0712270 | |
| Weight (1 pc.) | 23.0 oz | 661 g |
| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 1.0000" | 25.400 mm |
| Functional width / WF | 0.9170" | 23.290 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 1.3780" | 35.000 mm |
| Overall height / OAH | 1.1970" | 30.400 mm |
| Cutting depth maximum / CDX | 0.8270" | 21.010 mm |
| Cutting width range / CW | 5.01 - 6.50 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
